Replacing antenna cable: Installation
Installation

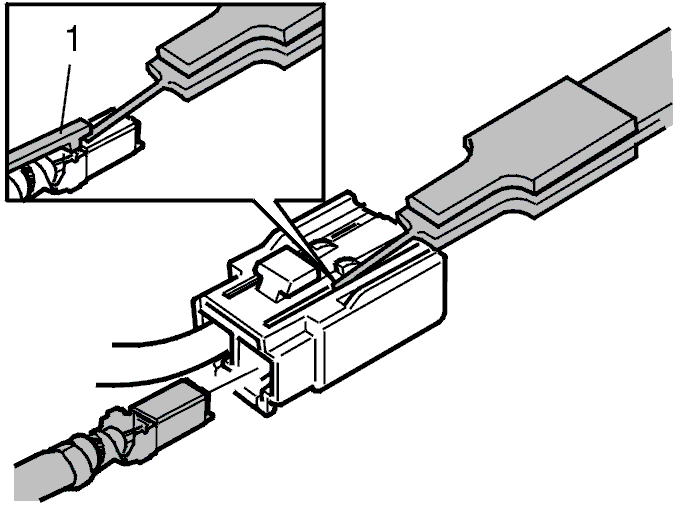

- Remove the primary lock (1) on the right-hand antenna cable by bending the lock upwards using the tool. Remove the antenna cable
- Install the new antenna cable in the connector
- Cut off the old antenna cable or secure the cable in position.
- Remove the combined instrument panel. See Driver information module (DIM), replacing

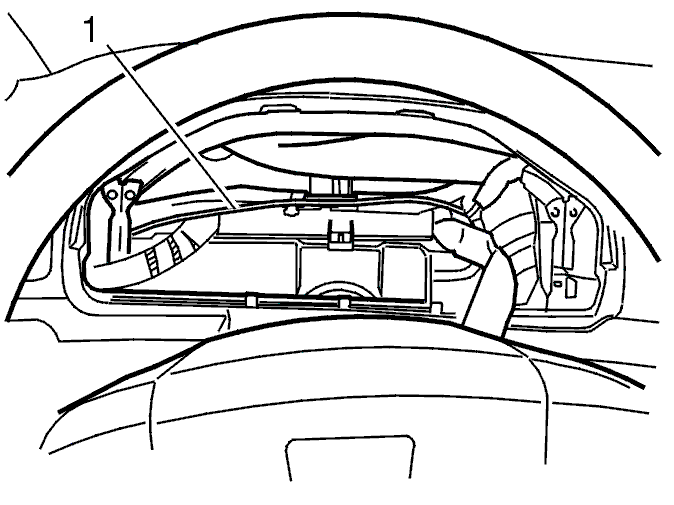

- Route the antenna cable from the audio control module to the cable duct (1) behind the combined instrument panel
- Reinstall the audio control module loosely. Lightly pull and shake the antenna cable to ensure that it does not cause a noise. In case of noise use foam rubber (P/N 9128331)
- Remove the hood lock control. See Mechanism, hood release, replacing . Route the antenna cable with the other wiring down to the left-hand front sill trim panel
- Remove the front and rear sill trim panel on the left-hand side. See The front sill trim panel and The rear sill trim panel . Route the antenna cable along the cable ducts in the door sills to the antenna amplifier in the left-hand D-post
- Secure the antenna cable at the existing wiring and cable ducts using tie straps
- Reinstall the audio control module, combined instrument panel, panels, hood lock control and sill trim panels.
