Checking main antenna and connector

Checking the main antenna / connector

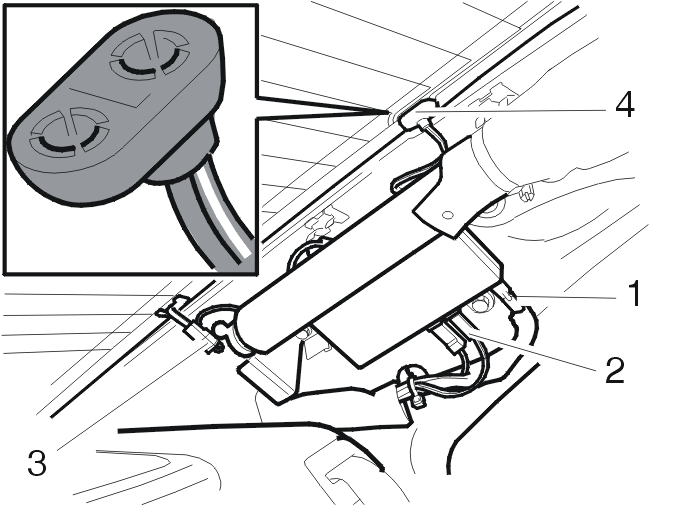

Fig 1: Identifying Main Antenna Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Check that the connector for the main antenna (4) is connected correctly to the antenna on the rear windshield. The cable for AM is marked with white stripes and must be at the top
• Remove the connector. Check the connector for oxidation
• Check if there is a shaded film on the rear windshield. This can reduce AM reception dramatically.

Checking the main antenna

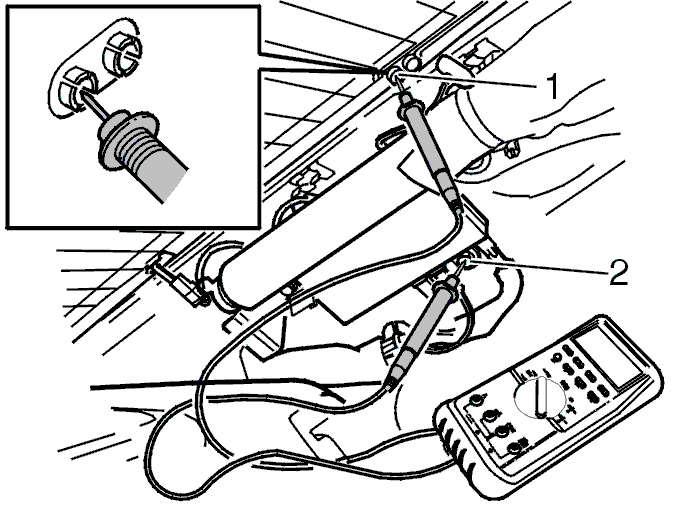

Fig 2: Identifying FM Connector To Ground Screw Resistance

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Measure the resistance between the lower switch for FM (1) on the rear windshield and the ground screw (2). The value must be 7-14 Ω.
• Measure the resistance between the upper switch for AM and the ground screw. The value must = ∞.
