Road Traffic Information Module (RTI), Replacing: Removal

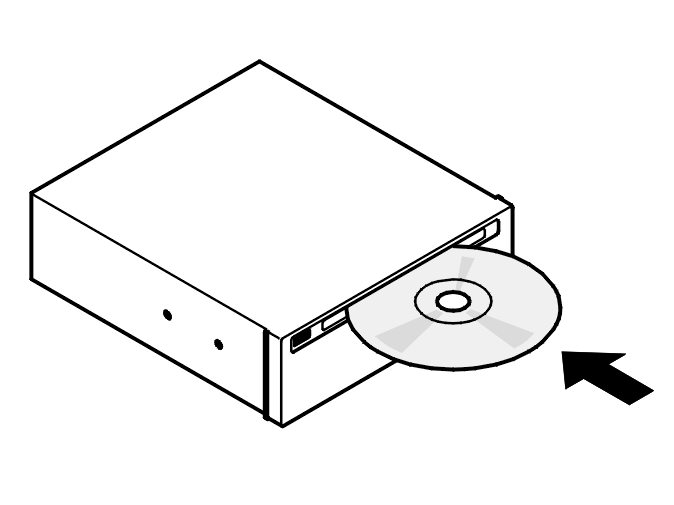

Fig 1: Identifying DVD Player And Disk

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: Try the latest edition of the DVD before replacing the road traffic information module (RTI). The software on the DVD may solve problems with the control module.

HINT: Then reinsert the old DVD to see if the fault persists.

• Remove the left-hand side panel in the cargo compartment
• Disconnect the connectors
• Remove the screw holding the control module
• Unscrew the bracket from the control module.
