Road Traffic Information Module (RTI), Replacing: Removal

Fig 1: Identifying Road Traffic Information Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Fold down the side panel on the left-hand side of the cargo compartment.
• Release the clips for the front side panel in the cargo compartment. Fold down the panel.
• Disconnect the connectors.
• Remove the screw holding the control module.

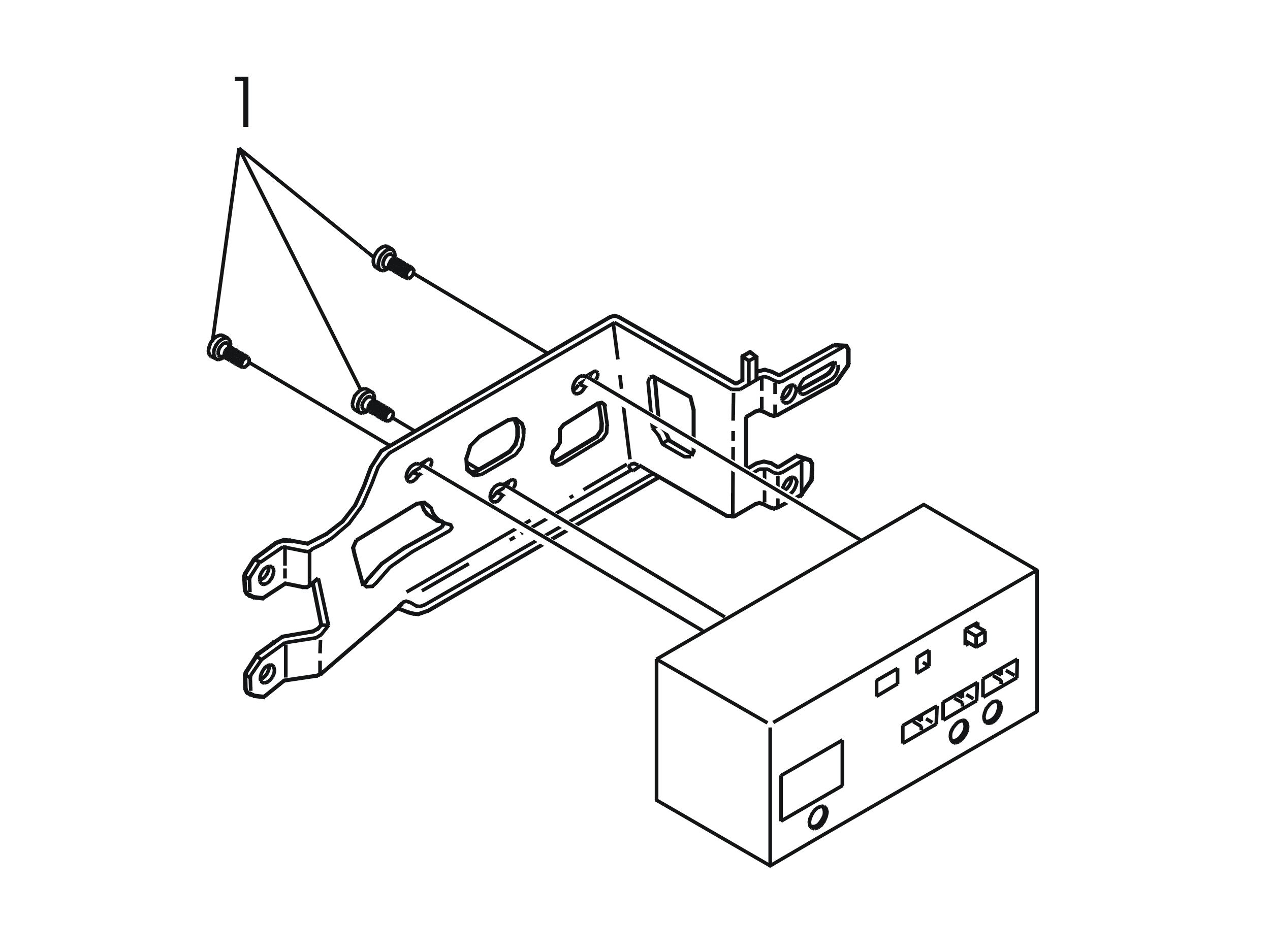

Fig 2: Identifying Road Traffic Information Module And Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Unscrew the bracket from the control module.
