Removing The Rear Seat Entertainment Module (RSE)

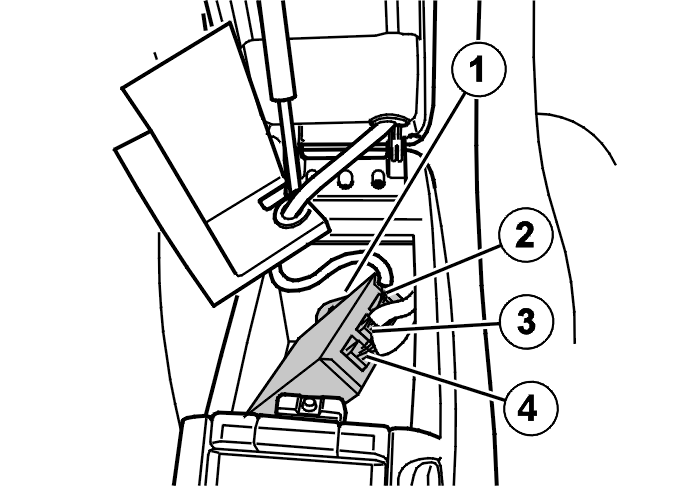

Fig 1: Rear Seat Entertainment Module
GLL111243Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift up the control module. Disconnect the four connectors.

Remove the control module.
