Removing The Insert From The Center Tunnel Console

Fig 1: 12 Volt Socket Cover And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the cover over the 12 volt socket on the rear edge of the center console. Insert a weatherstrip knife in the lower edge and pry off
• the 2 screws and the panel for the 12 volt socket
• the screw holding the insert at the rear edge.

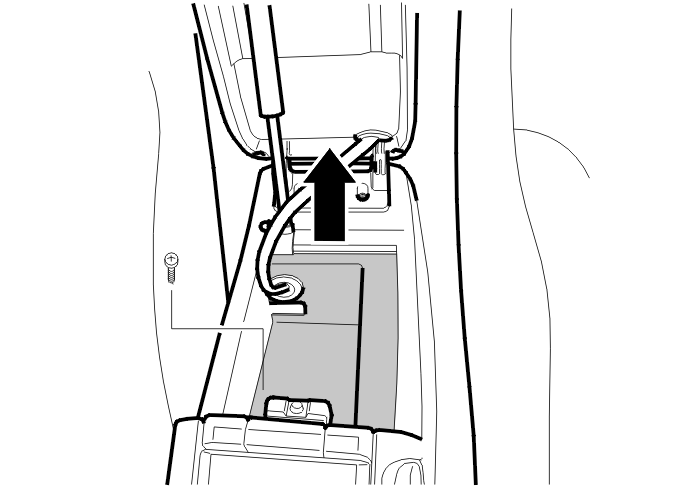

Fig 2: Bottom Insert Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold up the armrest on the center console.

Remove the screw holding the insert at the bottom.

Pull the insert straight up.
