Installing The Insert In The Center Tunnel Console

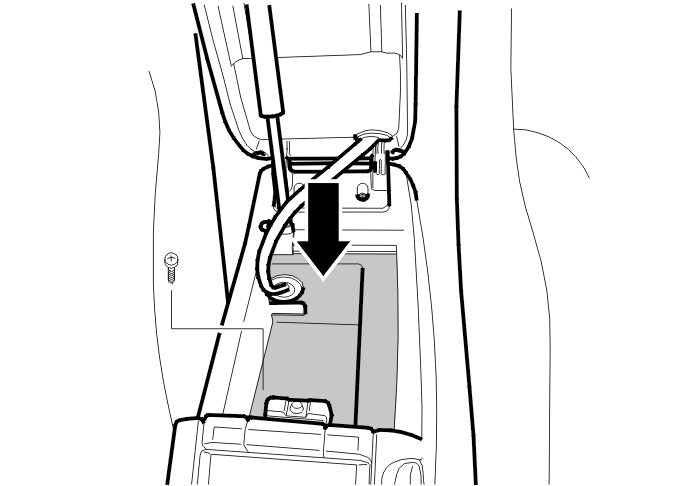

Fig 1: Installing Insert In Center Tunnel Console

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the insert into position in the center console.

Install:

• the screw in the bottom of the insert.

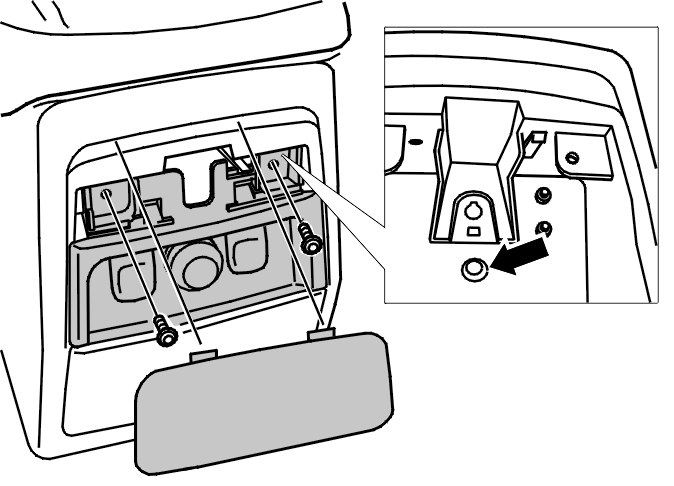

Fig 2: 12 Volt Socket Cover And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the screws holding the insert at the rear edge
• the panel for the 12 volt socket and its 2 screws
• the cover over the 12 volt socket.

Fold down the armrest on the center console.
