Removing Head Restraints

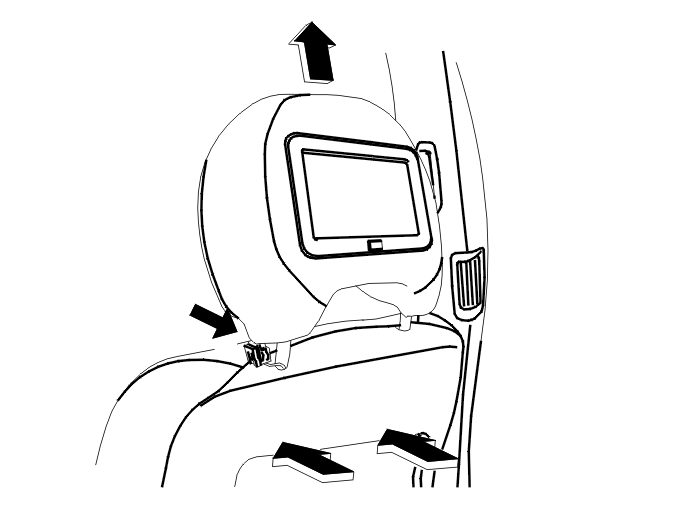

Fig 1: Removing Head Restraints
GLL111246Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the two catches. Press through the upholstery.

Lift up the head restraint approximately 3 cm.

Pull the connector out of the padding. Disconnect the connector.

Pull up the entire head restraint.
