Installing the DVD Player

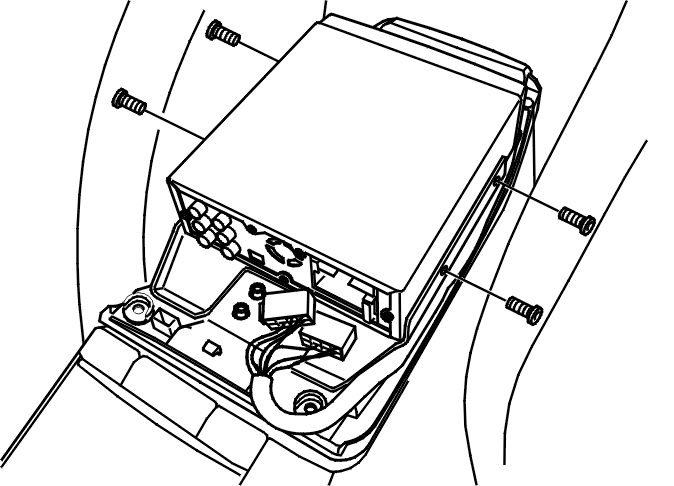

Fig 1: DVD Player Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the DVD player on the inner cover on the armrest.

Install the 4 mounting screws for the DVD player.

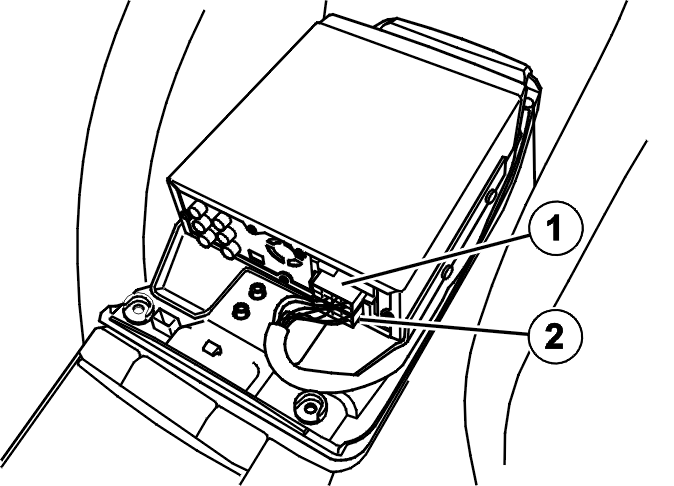

Fig 2: DVD Player Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the two connectors on the reverse of the DVD player.
