TV Receiver, Replacing: Removal

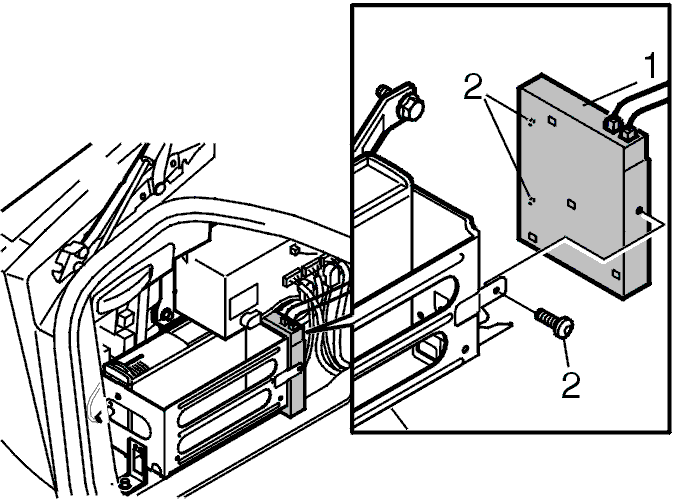

Fig 1: Identifying TV Receiver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the CD player and its holder without removing the switches. See CD reader, RTI (road traffic information), replacing
Disconnect the connectors.
NOTE:
The DIN connector and terminal on the receiver are marked yellow.
Remove the screws from the receiver. Remove the receiver.
