Connection to CD drive, applies to cars outside Europe

Applies to cars without towbar from and including model year 2005-

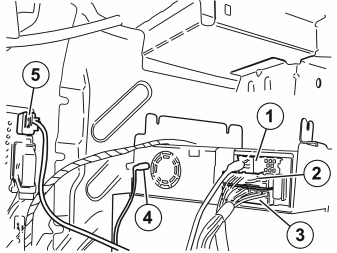

Fig 1: CD Drive And Cables

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect:

the cable (1) with yellow connector in the routed cable harness to the CD drive, furthest to the left in the connector
the cable (2) with brown connector in the routed cable harness to the CD drive
the cable (3) with black connector in the routed cable harness to the CD drive
the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive.
White and green/blue connectors in the routed cable harness are only used if the car is to have a TMC receiver. Clamp them up with tie straps from the kit.
the cable (5) with large black connector in the routed cable harness to the socket for towbar wiring in the fuse holder.

Applies to cars with towbar from and including model year 2005-

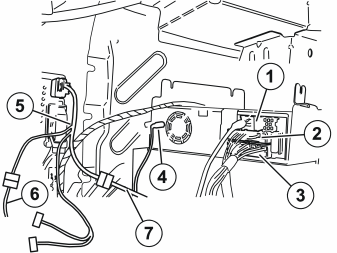

Fig 2: CD Drive And Cables

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect:

the cable (1) with yellow connector in the routed cable harness to the CD drive, furthest to the left in the connector
the cable (2) with brown connector in the routed cable harness to the CD drive
the cable (3) with black connector in the routed cable harness to the CD drive
the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive.
White and green/blue connectors in the routed cable harness are only used if the car is to have a TMC receiver. Clamp them up with tie straps from the kit.
the adapter wiring (5) from the kit with large black and grey connectors, to the socket for towbar wiring in the fuse holder. The existing connector to the towbar wiring in the fuse holder is detached.
the cable (6) from the towbar wiring to the adapter wiring
the cable (7) in the routed cable harness to the adapter wiring

The two grey connectors shall not be used. Clamp them up together with all excess cables using a tie strap from the kit, on the left-hand side in the rear edge of the wheel housing in a suitable way, so that there is no rattling.

Applies to cars without towbar up to and including model year -2004

Fig 3: Identifying Cables For CD Drive (Cars Without Towbar, -2004) (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect:

the cable (1) with yellow connector in the routed cable harness to the CD drive, furthest to the left in the connector
the cable (2) with brown connector in the routed cable harness to the CD drive
the cable (3) with black connector in the routed cable harness to the CD drive
the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive.
White and green/blue connectors in the routed cable harness are only used if the car is to have a TMC receiver. Clamp them up with tie straps from the kit.
the cable (5) in the adapter wiring from the kit with large black and grey connectors, to the corresponding connector in the routed cable harness

Fig 4: Identifying Cables For CD Drive (Cars Without Towbar, -2004) (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

the cable (6) in the adapter wiring is routed to the rear crossmember, over the rear end of the left-hand side member, to the pre-routed connector for the towbar wiring
the grey connector (7) to the towbar wiring, to the corresponding connector in the routed adapter wiring

The two black connectors shall not be used. Clamp them up together with all excess cables using a tie strap from the kit, on the left-hand side in the rear edge of the wheel housing in a suitable way, so that there is no rattling.

Clamp up the adapter wiring together with the excess grey connector along the rear crossmember with four tie straps (8) from the kit.

Applies to cars with towbar up to and including model year -2004

Fig 5: Identifying Cables For CD Drive (Cars With Towbar, -2004) (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect:

the cable (1) with yellow connector in the routed cable harness to the CD drive, furthest to the left in the connector
the cable (2) with brown connector in the routed cable harness to the CD drive
the cable (3) with black connector in the routed cable harness to the CD drive
the cable (4) from the GPS antenna (a faint click is heard when it is connected) to the CD drive.
White and green/blue connectors in the routed cable harness are only used if the car is to have a TMC receiver. Clamp them up with tie straps from the kit.
the cable (5) in the adapter wiring from the kit with large black and grey connectors, to the corresponding connector in the routed cable harness

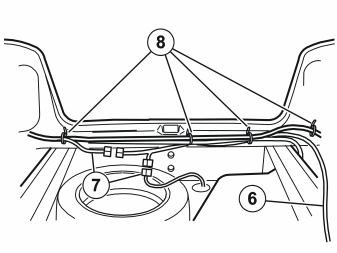

Fig 6: Identifying Cables For CD Drive (Cars With Towbar, -2004) (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

the cable (6) in the adapter wiring is routed to the rear crossmember, over the rear end of the left-hand side member, to the connectors for the towbar wiring
pull apart the connectors (7) to the towbar wiring and connect to them the two grey connectors in the adapter wiring

Clamp up the adapter wiring along the rear crossmember with four tie straps (8) from the kit.
