Installing the Sirius antenna. Applies to all models

Fig 1: Washing Area On Roof Around Where Antenna And Antenna Cable Shall Be Located Using A Mixture Of Washer Fluid And Water.

Courtesy of VOLVO CARS OF NORTH AMERICA.

Wash the area on the roof around where the antenna and antenna cable shall be located using a mixture of washer fluid and water.
Also wash the area around the left-hand hinge of the boot lid where the antenna cables shall be secured using a mixture of washer fluid and water.
NOTE: Thoroughly remove all dirt and grease.
Wipe dry.

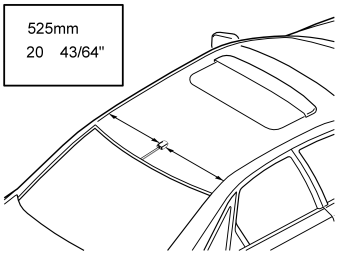

Fig 2: Antenna Measurements

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take the antenna from the kit
Place the antenna to the back of the cleaned roof without removing the protective backing tape.
The antenna must be located so that the end of the cable's rubber coated section exactly reaches the end of the roof.
Measure from both sides of the roof to the antenna. The measurement must be approx. 525 mm (20 43/64") .

Fig 3: Marking Correct Antenna Position With Tape

Courtesy of VOLVO CARS OF NORTH AMERICA.

Hold the antenna to the roof and mark out around it with tape so that the correct position for it is marked.

Fig 4: Removing Protective Backing Tape From Underneath Antenna

Courtesy of VOLVO CARS OF NORTH AMERICA.

Enlist help from a colleague to sit inside the car and press against the headlining under the location for the antenna.
Remove the protective backing tape from underneath the antenna and locate it within the tape markings.
HINT: The antenna can be moved carefully if it is not pressed down straight away. The tape must not make contact with the roof as the antenna has a rubber edge around the underside.
Hold against the roof from the inside while the antenna is pressed in straight down with a force of 2-3 kg (4-6 lbf.) for several seconds.
