Radio/Cassette player: Preparations

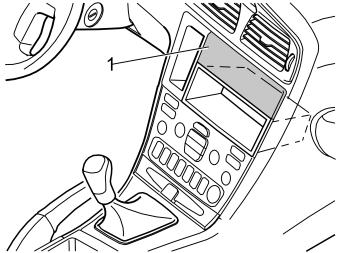

Fig 1: Removing Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

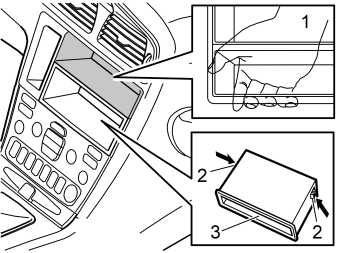

Fig 2: Inserting Hand Through Upper Compartment, Releasing Catches, And Sliding Out Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert a hand through the upper compartment (1). Push up the bottom rear edge of the lower compartment to release the two catches (2)
Slide out the compartment (3).

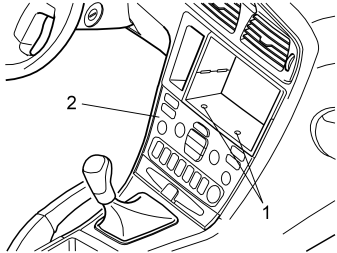

Fig 3: Remove Screws Holding Dashboard Environment Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two screws (1) holding the dashboard environment panel (2). These two screws are on the base of the radio tray.

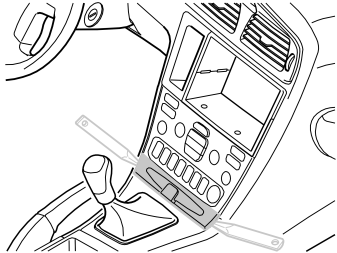

Fig 4: Removing Panel In Front Of Gear Selector Lever

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pry off the panel in front of the gear selector lever. Use a plastic weatherstrip tool as shown. Remove the panel in front of the gear selector lever.

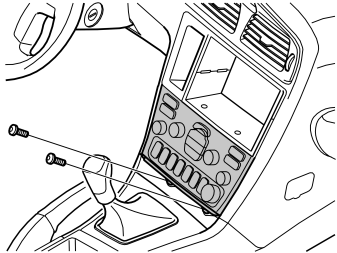

Fig 5: Remove Screws From Dashboard Environment Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

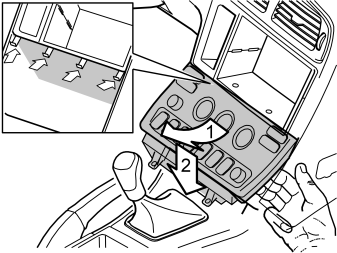

Fig 6: Angle Dashboard Environment Panel Outwards To Insert Fingers Between Center Console And Side Of Dashboard Environment Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Angle the dashboard environment panel outwards so that it is possible to insert a couple of fingers between the center console and the side of the dashboard environment panel
Pull the dashboard environment panel downwards while maintaining the same angle. Remove the dashboard environment panel. Some force is required because the panel is tightly installed
Disconnect the connectors on the reverse of the dashboard environment panel. Put the dashboard environment panel to one side.

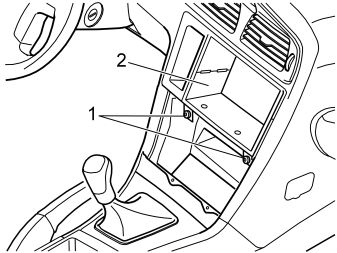

Fig 7: Remove Screw From Radio Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.
