Radio/Cassette player: Installation

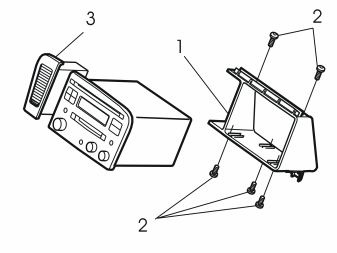

Fig 1: Installing Radio In Bracket Using Screws And Storage Compartment On Left-Hand Side Of Radio

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Install the radio in the bracket (1). Use the screws (2)
• Install the storage compartment (3) on the left-hand side of the radio.

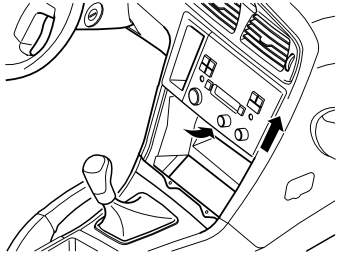

Fig 2: Inserting Radio In Its Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Bring the radio up to the radio tray
• Connect the connectors for the power supply, the loudspeaker, the antenna and any other units to the radio
• Insert the radio in its compartment
• Slide the radio up so that the groove on the upper side of the bracket goes round the upper edge of the compartment for the radio. At the same time, press the lower mounting of the bracket against the lower edge of the compartment for the radio.

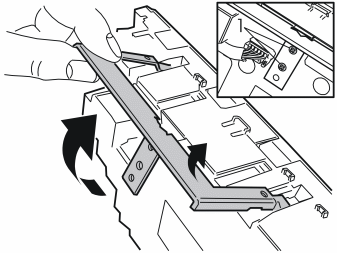

Fig 3: Removing Screws And Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the two screws (1) holding the bracket at the dashboard environment panel
• Bend up the bracket. Remove the bracket. (It will not be used again)
• Connect the connectors. Reinstall the dashboard environment panel
• Install the screws
• Install the panel in front of the gear selector lever.

Applies to cars which have not previously had a radio installed

Fig 4: Cover On Left-Hand Side Of Dashboard

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the cover (1) for the fuse holder on the left-hand side of dashboard.
• Install a 5 A fuse in socket number 15. Install a 20 A fuse in socket number 16.
• Reinstall the cover on the fuse holder.
