Applies to the S80

Fig 1: Turning Ignition To Position 0

Courtesy of VOLVO CARS OF NORTH AMERICA.

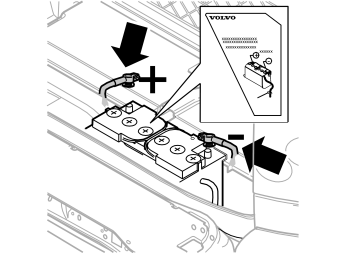

Fig 2: Positive And Negative Cables On Battery

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Wait at least five minutes before disassembling the connectors or removing other electrical equipment.

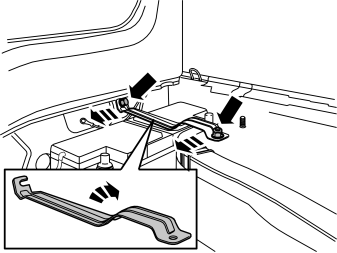

Fig 3: Battery Cover Mounting Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the mounting bracket over the battery's protective cover, it is fitted with a nut and a screw.

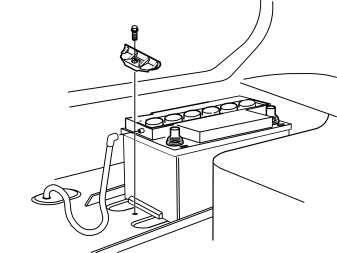

Fig 4: Battery Holder

Courtesy of VOLVO CARS OF NORTH AMERICA.

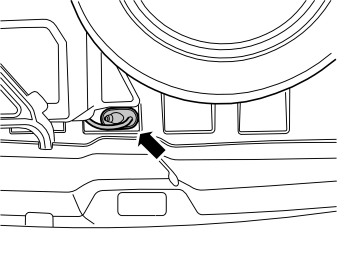

Fig 5: Drainage Grommet

Courtesy of VOLVO CARS OF NORTH AMERICA.

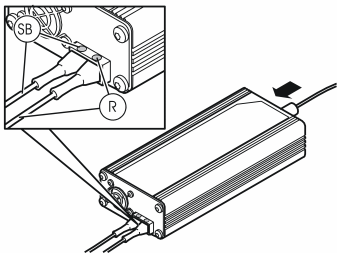

Fig 6: Power Supply Cables

Courtesy of VOLVO CARS OF NORTH AMERICA.

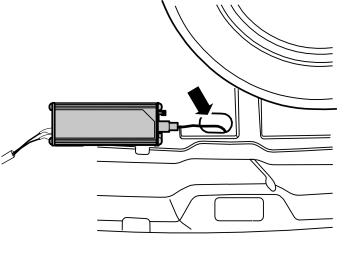

Fig 7: Power Supply Unit At The Rear Edge Of The Spare Wheel And Pull The Power Cable Out Through The Hole In The Floor.

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the power supply unit at the rear edge of the spare wheel and pull the power cable out through the hole in the floor.

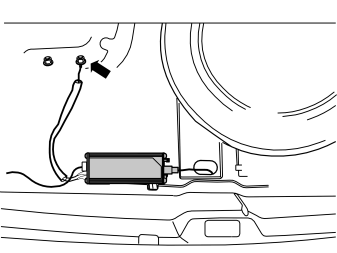

Fig 8: Connecting Ground Cable To Left-Hand Stud In Mounting Bracket For Battery's Protective Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the black (SB) ground cable to the left-hand stud in the mounting bracket for the battery's protective cover.

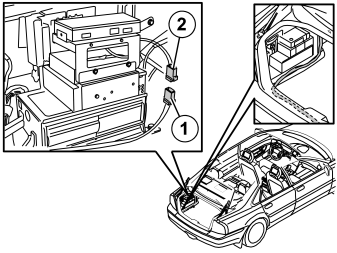

Fig 9: Plugging Connector For Routed Cable Harness Into Connector On Existing Cable From Fuse Holder At Rear Of Left-Hand Rear Wheel Arch

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold out the left-hand side panel.
Route the cable at the rear of the side panel and then forwards to the left-hand rear wheel arch.
Plug the connector (1) for the routed cable harness into connector (2) on the existing cable from the fuse holder at the rear of the left-hand rear wheel arch.

Connect the power cable to the wall socket.
NOTE: The power supply unit automatically adjusts itself to the prevailing voltage in the wall socket.
Test the system.

After completed demonstration:

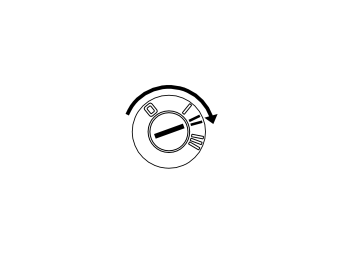

Fig 10: Turning Ignition Key To Position II

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the cable harness from the small fuse box and reconnect the disconnected cables.
Detach the ground cable from the stud for the battery's mounting bracket.
Remove the power supply unit and its cables from the cargo compartment.
Reinstall the battery. Reinstall the holder on the right-hand side and torque tighten the screw to 24 Nm (18 lbf. ft.) .
Reinstall the rubber grommet in the cargo compartment floor.
Turn the ignition key to position II.
Reconnect the battery leads, positive lead first, then the negative lead.
Reinstall the mounting bracket over the battery. Torque tighten the nut and the screw to 24 Nm (18 lbf. ft) .
Fold the side panel back into position.
Reinstall the cargo compartment carpet.
