Integrated Car Phone: Preparations

Fig 1: Disconnect Battery Negative Lead

Courtesy of VOLVO CARS OF NORTH AMERICA.

Note the anti-theft radio code (if applicable)
Move the front seats to their rearmost, uppermost positions
Turn the ignition key to position 0
Remove the key from the ignition switch (does not apply to cars with automatic gearboxes)
Disconnect the battery negative lead.

NOTE: Wait at least five minutes before disconnecting the connectors or removing other electrical equipment.

Fig 2: Removing Panel With Boot Using Weatherstrip Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the panel (1). Detach the gear selector lever boot using a weatherstrip tool.

Fig 3: Panel With Boot And Screws For Dashboard Environment Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Move the gear selector lever to the rearmost position
Twist the gear selector lever panel (1) 90°.
Remove the two screws (2) from the dashboard environment panel (3).

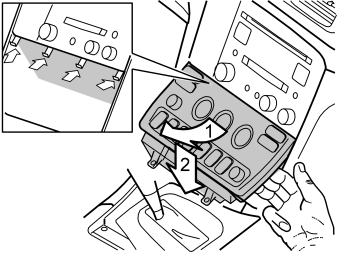

Fig 4: Removing Dashboard Environment Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Angle the dashboard environment panel outwards so that it is possible to insert a couple of fingers between the center console and the rear of the dashboard environment panel
Remove the dashboard environment panel. Pull it downward, maintaining the same angle. Some force is required because the panel is tightly installed. It may be easier to pull one side loose at a time
Disconnect the connectors on the reverse of the dashboard environment panel. Put the dashboard environment panel to one side.

NOTE: If any of the outer hooks break off, these must be repaired. The method for this can be found in the Workshop Manual in the section about the dashboard.

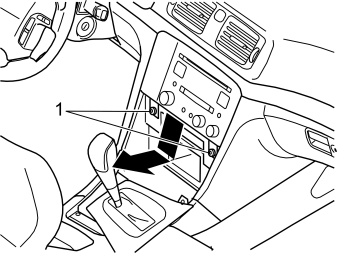

Fig 5: Removing Radio Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screws (1) from the radio bracket
Pull out the bracket with the radio. Pull the lower corner while pressing downwards
Disconnect the connectors on the radio. Place the bracket and the radio to one side.

Fig 6: Removing Right And Left-Hand Side Center Console Panels, Screws On Panel, And Sill Molding

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the right and left-hand side center console panels (1). Turn the clip at the rear edge of the panel through 90°. Pull the rear edge of the panel out and back
Remove the two screws on the panel (2) under the glove compartment. Remove the panel. Then pull the panel downwards/backwards at the rear edge, it is secured by two clips
Remove the sill molding (3). Pull the front edge of the sill molding back to release it. Then pull the molding upwards.

Fig 7: Dashboard End Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel on the right-hand end of the dashboard.
