Installing the keypad in the steering wheel

Fig 1: Detaching Spring-Loaded Screws & Steering Wheel Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off both the spring loaded screws (1) on the reverse of the steering wheel
Slacken off the screws so that the threads release and the screws spring back
Fold out the steering wheel module (2).
NOTE: Do not damage the wiring.

Fig 2: Disconnecting SRS Connectors And Removing Horn Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the SRS connectors (1) from the steering wheel module. Press in the catches on the sides and then carefully pull the connectors straight back. The connectors are hard to separate. Be careful
Disconnect the horn connector (2)
Remove the connector (3).

Fig 3: Disconnecting Connectors Without Damaging Ground Lead And Slackening Off Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars with cruise control

Applies to all models

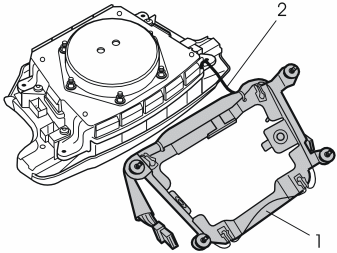

Fig 4: Lifting Out Horn Ring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 5: Removing Screws And Steering Wheel Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars without cruise control

Remove the steering wheel panel (1) by lifting it up and pulling it out
Install the new steering wheel panels (from the kit). Tighten the screws. Tighten to 1.1 Nm (0.8 lbf. ft.) .

Applies to cars with cruise control

Remove the steering wheel panel (1) on the right-hand side, by lifting it up and pulling it out
Install the new steering wheel panel from the kit. Tighten the screws. Tighten to 1.1 Nm (0.8 lbf. ft.) .

Reinstall the horn. Tighten the screws crosswise. Tighten to 6.5 Nm (4.8 lbf. ft) .

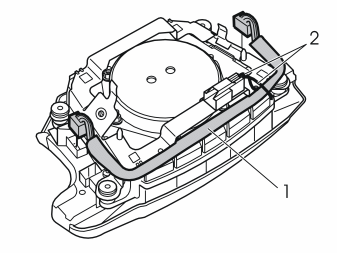

Fig 6: Threading Cable Between Cables For Horn

Courtesy of VOLVO CARS OF NORTH AMERICA.

Thread the cable (1) between the cables (2) for the horn
Connect all the connectors on both sides.
NOTE: Ensure that the cable end marked "Radio" is connected to the steering wheel panel for the radio.

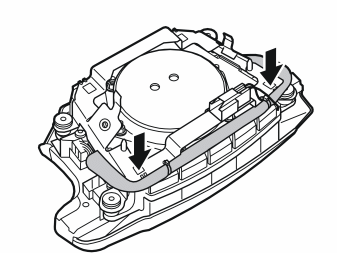

Fig 7: Evenly Distributing Cable With Connectors In Correct Positions

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ensure that the cable is evenly distributed with the connectors in their correct positions
Route the cable over the corners of the horn. Secure the cable using tie straps in the existing holes. Cut off any excess.

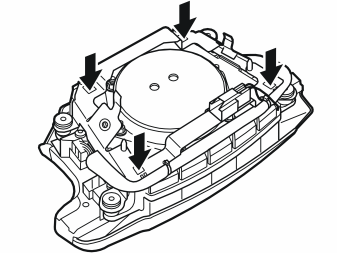

Fig 8: Pressing Horn Corners

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check the horn function by pressing each of its corners. The horn should move freely and should click.

Fig 9: Connecting Wiring To Connectors On Steering Wheel Module And Reinstalling Ignition Cable For SRS

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the wiring (1) to the relevant connectors on the steering wheel module
Carefully reinstall ignition cable (2) for the SRS (supplemental restraint system) on the steering wheel module
Position the steering wheel module. Check that no cables are trapped.

Fig 10: Installing Screws On Reverse Of Steering Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the screws on the reverse of the steering wheel. Tighten the screws. Tighten to 10 Nm (7.4 lbf. ft.) .

Fig 11: Connecting Negative Battery Lead

Courtesy of VOLVO CARS OF NORTH AMERICA.
