Installing the handset
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Lift up the armrest. Remove both the screws. Remove the armrest
- Install the new armrest with the handset
- Remove the panel (1). First pry off the lower edge. Then bend the panel backwards and outwards
- Remove the ashtray (2)
- Remove the panel (3) by slackening off the screws (4).
Courtesy of VOLVO CARS OF NORTH AMERICA.

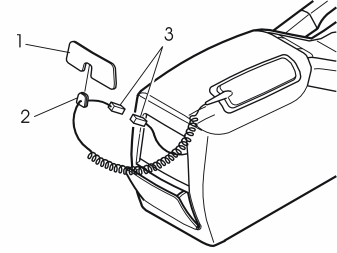

- Install the rubber grommet (2) in the groove on the panel (1)
- Connect the connectors (3) from the handset to the cable from the keypad
- Reinstall the panel and ashtray
- Reinstall the panel in the center console
- Screw the center console into place using the four screws
- Reinstall the panel under the glove compartment. Reinstall the sill trim panel by the right-hand front door
- Reinstall the center console panels.
