Installation kit single DIN radio: Installation

Applies to all models

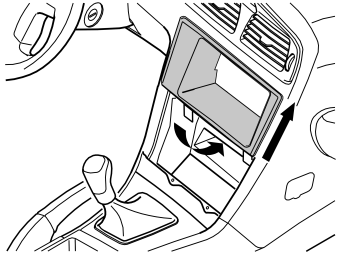

Fig 1: Sliding Radio Bracket Up And Pressing Lower Mounting For Radio Bracket Towards Lower Edge Of Center Console

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Take out the new radio bracket
• Slide the radio bracket up so that the groove in the upper edge goes round the upper edge of the center console. At the same time press the lower mounting for the radio bracket towards the lower edge of the center console
• Tighten the radio bracket using the existing screws.

Applies to the S80

Fig 2: Installing Mounting Bracket At Dashboard Environment Panel Using Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Take out the new mounting bracket for the dashboard environment panel
• Turn the dashboard environment panel upside down
• Install the mounting bracket on the reverse of the dashboard environment panel above the locating pin and the existing holes
• Tighten the mounting bracket at the dashboard environment panel. Use the two new screws (1).
