Preparations, passenger compartment, continued

Fig 1: Identifying Seat Cushion

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the rear seat cushion (1) by pulling up its front edge, pulling it forwards and then lifting it out.

Fig 2: Remove Sill Molding For Left-Hand Rear Door

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the sill trim panel at the left rear door.

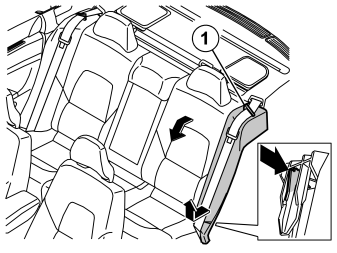

Fig 3: Removing Seat Belt From Guide

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the seat belt from the guide (1) on the left-hand side cushion.
• Insert your hand on the side of the lower part of the left side cushion. Release the catch while lifting the cushion. Put the cushion to the side.
• Lower the left backrest.
