Connection to the iPod adapter

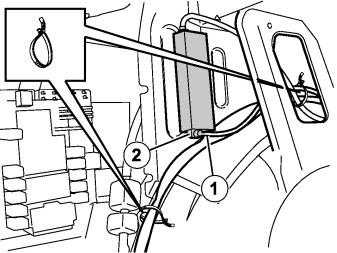

Fig 1: iPod Adapter Power Supply Blue Connector And Melbus Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

For cars without RTI, Sirius satellite radio or TV

Plug in the blue connector (1) for the iPod adapter's power supply.
Connect the routed Melbus cable (2) to the iPod adapter.
Clamp in all cable harnesses at existing cable harnesses using tie straps from the kit. Use the hole in the plastic edge at the rear edge of the wheel housing to fasten the tie straps. Make sure that the cables do not chafe against sharp edges.

Fig 2: Position Red/White Single Cables Along Cable, Insulate And Secure Cables Using Foam Tape

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars with RTI (road traffic information)

Position the two red/white (R/W) wires back along the cable. Insulate and fasten them at the cable using foam tape from the kit. They must not come into contact with the chassis. The two green connectors should be loose.

Applies to cars with RTI (road traffic information)

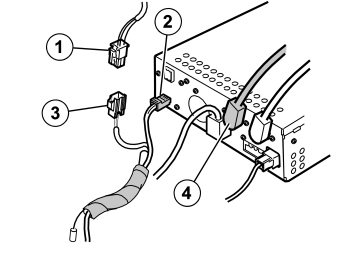

Fig 3: Connections To DVD Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connection to the DVD unit

Unplug the DVD power supply connector (1).
Plug in the connector of the iPod adapter power supply into the DVD unit (2).
Plug in the connector unplugged from the DVD unit into the other connector of the iPod adapter (3).
Connect the Melbus cable (4), P/N 8633596, to the DVD unit.
Clamp in all cables at existing cable harnesses using tie straps from the kit. Make sure that the cables do not chafe against sharp edges.

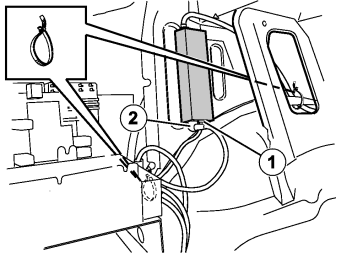

Fig 4: iPod Adapter Power Supply Blue Connector And Melbus Cable (Cars With RTI)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars with RTI (road traffic information)

Plug in the blue connector (1) for the iPod adapter's power supply.
Connect the Melbus cable (2), P/N 8633596, from the DVD unit.
Clamp all cable harnesses and excess Melbus cable together with existing cable harnesses using tie straps from the kit. Use the hole in the edge of the plate at the rear edge of the wheel housing to secure the tie strap. Make sure that the cables do not chafe against sharp edges.

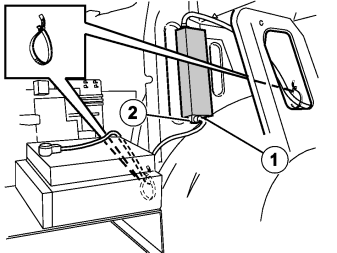

Fig 5: iPod Adapter Power Supply Blue Connector And Melbus Cable (Sirius Satellite Radio Or TV)

Courtesy of VOLVO CARS OF NORTH AMERICA.

For cars with Sirius satellite radio or TV

Plug in the blue connector (1) for the iPod adapter's power supply.
Connect the Melbus cable (2) P/N 8673298 between the iPod adapter and the Sirius/TV unit.
Clamp all cable harnesses and excess Melbus cable together with existing cable harnesses using tie straps from the kit. Use the hole in the edge of the plate at the rear edge of the wheel housing to secure the tie strap. Make sure that the cables do not chafe against sharp edges.
