Installing the antenna

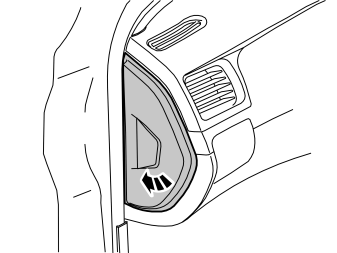

- Remove the left-hand end panel from the dashboard by sliding it rearwards slightly, and then pulling it off grasping the existing handle.
NOTE:
There are two versions of A pillar panel mountings nearest the headlining.
- Detach the door sealing molding (1) at the panel.
- Pull the panel straight inwards into the car.
- Lift up the panel.

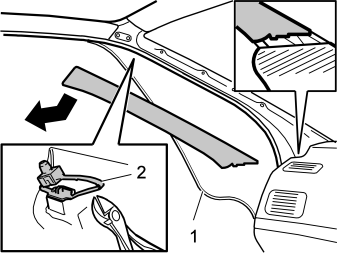

- Cut off the safety clip (2).
NOTE:
Ensure that the guide lugs on the panel do not scratch the dashboard.
- Turn the safety clip a quarter turn. Remove the safety clip.
- Detach the door sealing molding at the panel.

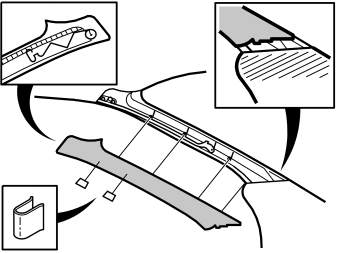

- Remove the two steel clips.
- Pull the panel straight inwards into the car.
- Lift up the panel.
- Clean the inside of the windshield using isopropanol.
- Remove the protective film from the antenna and position as shown.

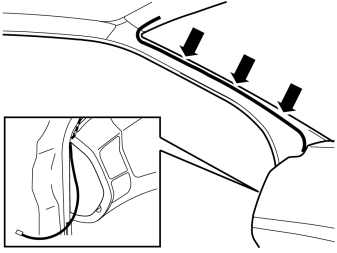

- Pull the antenna cable down along the A-pillar towards the dashboard and out by the end.
- Secure the cable using three tie straps.
WARNING:
The inflatable curtain (IC) is located inside the A-pillar panel, it is important that the cable is not positioned on it.
