Handsfree, entry level: Connecting
Fig 1: Turning Clip A Quarter Turn Anti-Clockwise And Pulling Panel Out And Backwards Until Hooks Release
- Turn the clip (1) a quarter turn anti-clockwise.
- Pull the panel out by the rear edge.
- Then pull the panel backwards until the hooks release.
- Remove the panel.
- Remove the screws and sound proofing bracket.
- Detach the sill trim panel at the front edge.
- Open the glovebox.
- Lift the two hooks on each side past the lugs.
- Detach the gas struts by pulling straight out.

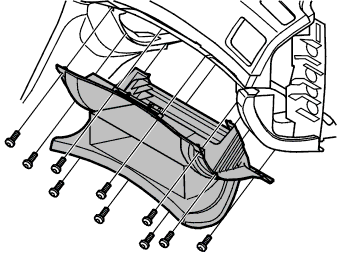

Remove:
- the ten screws
- the connector for the glove box lighting
- the glove box
Fig 6: Connecting Antenna Cable To Short Cable From Telephone Holder Mounting Plate And Pulling Microphone Cable Towards Glove Box
- Connect the antenna cable (1) to the short cable (2) from the telephone holder mounting plate.
- Pull the microphone cable (3) further towards the glove box.
- Cut the protective casing approximately 120 mm on the car's cable harness (the one that the antenna cable for the radio is positioned in).
Fig 8: Connecting Adapters Green And Gray Connector To Vehicle's Cable Harness And Tape Around Connector
- Connect the adapter cable's green and gray connector (1) to the vehicle's cable harness (2).
- The connectors (3) are later connected to the radio.
- Position the connected gray connector up to the left and the green connector at the bottom in the middle so that they are not obstructive when installing the radio.
Applies to cars with external amplifier
- Take the gray connector located up to the left in the center console.
- Remove the foam tape.
- Disconnect the connectors and connect the two gray adapter cable connectors.
- Reinstall the foam tape.
- Take the mute relay from the kit and connect the connectors.
- Tape a thick piece of foam tape around the relay and the connectors.
- Take a large tie strap from the kit and secure the relay to the bracket for the A/C unit.
