Connecting the handsfree box

Applies to Nokia

Fig 1: Identifying Handsfree Box Mounting Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Install the adapter plate (1) on the bracket (2.) Use the screws (3) and the nuts (4).

On cars without an accessory electronic module do not use the long single cable. Hide the single cable. Insulate the cable terminal using a piece of foam tape from the kit.

Applies to Ericsson

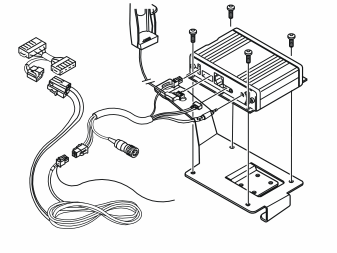

Fig 2: Identifying Radio, Harness, Bracket And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Connect the wiring from the car phone holder and the radio to the hands free box
• Screw the hands free box onto the bracket.

Applies to Nokia

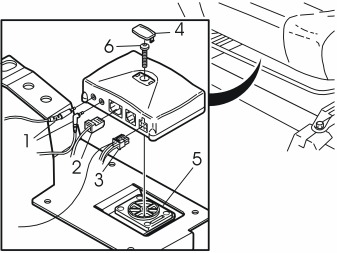

Fig 3: Identifying Car Phone Holder, Radio, Handsfree Box, Adapter Plate, Screw And Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Connect the wiring for the head restraint (1), the car phone holder (2) and the radio (3) to the handsfree-box as shown.
• Secure the hands free box on the adapter plate (5). Use the screw (6). Install the cover (4).
