Installing the external base module

Does not apply to the S40, V40, S60, V70 (00-) or S80

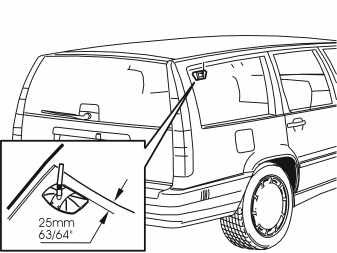

Fig 1: Identifying Antenna Mounting Location

Courtesy of VOLVO CARS OF NORTH AMERICA.

Does not apply to the S60 or S80

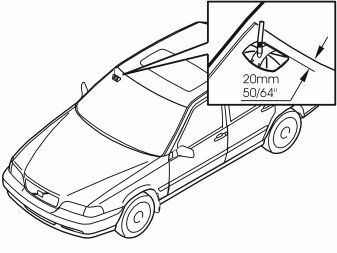

Fig 2: Identifying Antenna Mounting Location

Courtesy of VOLVO CARS OF NORTH AMERICA.

Does not apply to the V70 (00-)

Fig 3: Identifying Antenna Mounting Location

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S40, S60 and S80

Fig 4: Identifying Antenna Mounting Location

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Check the location as shown. Ensure that the antenna is clear of the windscreen trim and wiper blade. Ensure that the antenna can be removed from the external base module when washing the car etc.
• Carefully clean the surface of the glass. Use the cleaning cloth supplied. Wipe dry using a rag.
• For optimum adhesion, warm the glass. Use a hairdryer for example.

Fig 5: Press Points For External Base Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the backing from the external base module. Secure the external base module on the windscreen. Press hard on points 1, 2, 3, 4 and 5, in order, for 3-4 seconds.
• Ensure that the tape is sealed around the external base module.
