Installing the internal base module

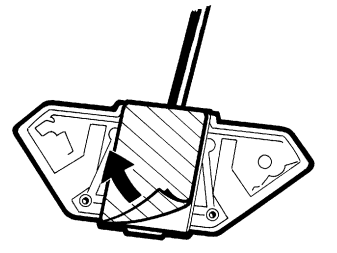

Fig 1: Removing Backing From Internal Base Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Templates are provided to facilitate installation of the internal base module. The templates are necessary because the black shading on the windscreen may conceal the external base module.

• Cut out the two templates provided with the graphics
• Align one template on the installed external base module. Secure it using tape
• Carefully clean the interior surface of the glass. Use the cleaning cloth supplied. Wipe dry using a rag
• Install the second template on the interior, edge to edge with the external template.

The internal and external base modules must be positioned directly opposite each other.

• Remove the backing from the internal base module. Install the internal base module in the cut-out on the second template. Install the internal base module in the same way as the external base module. Press hard for 20 seconds.
• Remove the templates.
