Connecting to the fuse holder

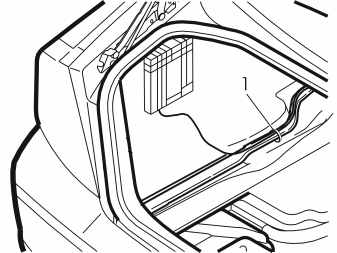

Fig 1: Securing Wiring At Cable Harness At Left-Hand Side Of Rear Cable Duct

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to all models

• Clamp the cables in at the cable harness/cable duct on the left-hand side with a tie strap from the kit. Clamp in any excess cable neatly.

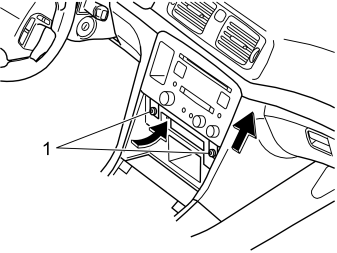

Fig 2: Tighten Bracket And Radio Using Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Connect the new routed DIN cable to the radio.
• Plug in the other connectors which were detached from the radio.
• Plug in the connectors for the phone keypad, if applicable.
• Refit the radio.
• Connect the connectors to the dashboard environment panel. Reinstall the dashboard environment panel.
• Reinstall the panel and gear selector lever boot around the gear selector lever.
• Fold back the carpet by the front seat.
• Refit the center console's side panel.
• Refit the sill trim panel in the left front and rear door.
• Reinstall the front and the new folding rear panel from the kit in the left-hand side of the cargo compartment.
• Reinstall the side bolster.
• Fold the backrest back into place.
• Reinstall the seat cushion.
• Turn the ignition key to position II.
• Reconnect the battery negative lead.
• Reposition the carpet in the cargo compartment.

Check that the system is working

• Install the memory unit (DMS) in the Jukebox
• Switch on the radio and select the 10-CD changer
  NOTE: The first time the system is started it takes approx. 30 seconds before it is operational.

Fig 3: USB Docking Station, Voltage Adapter, CD-ROM Jukebox And Owners Manual

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Check that the parts shown are in the storage compartment supplied with the Jukebox, and that this is positioned as shown:
  1. USB docking station
  2. Voltage adapter
  3. CD-ROM Jukebox
  4. Owner's Manual
