Connecting to the DVD unit

Fig 1: Position Single Cables In Routed Cable Harness Backwards Along Cable And Insulate And Secure With Foam Tape

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the single cables in the routed cable harness backwards along the cable. Insulate and secure them by the cable with foam tape from the kit. The two green connectors must be loose.

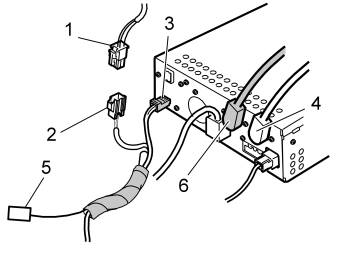

Fig 2: Identifying Connector, Detached DIN Cable, Green Connector, Short DIN Cable And Jukebox Adapter Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Plug in the connector (1) previously detached from the DVD unit to one connector (2) in the cable harness to the Jukebox power supply.
Plug in the other connector (3) for the Jukebox power supply to the DVD unit.
Plug in the previously detached DIN cable (4) to the DVD drive.
Connect the remaining green connector (5) in the cable harness for the Jukebox power supply, to the connector (7) in the Jukebox adapter cable.
Connect the short DIN cable (6) from the kit between the DVD unit and the Jukebox adapter cable (8). (For cars with TV or Sirius unit, the DIN cable must be connected to this instead).
Plug in the remaining connectors which were detached from the DVD drive.
Reinstall the DVD drive and torque tighten the screws to 10 Nm (7.5 lbf. ft.) .

Applies to cars - 2004

Check if there is a 10 A fuse in position 10 in the rear electronic module (REM).

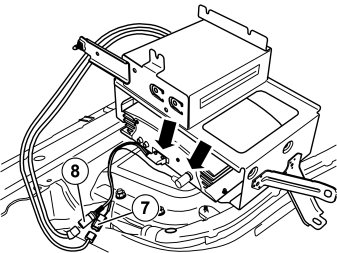

Fig 3: Identifying Jukebox Adapter Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying Rear Electronic Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 5: Securing Wiring At Cable Harness At Left-Hand Side Of Rear Cable Duct

Courtesy of VOLVO CARS OF NORTH AMERICA.

Collect any excess cable and clamp it in by the existing cable harnesses by the fuse holder with a tie strap from the kit.
Securely clamp the cables at the cable harness/cable duct with tie strap (1) from the kit.

Reinstall the front and the folding rear panel in the left-hand side of the cargo compartment.
Reinstall the side bolster.
Fold the backrest back into place.
Reinstall the seat cushion.
Turn the ignition key to position II.
Reinstall the seat cushion.
Reconnect the battery negative lead.
Reinstall the cargo compartment carpet.

Check that the system is working.

Install the memory unit (DMS) in the Jukebox.
Switch on the radio and select the 10-CD changer.
NOTE: The first time the system is started it takes approx. 30 seconds before it is operational.

Fig 6: USB Docking Station, Voltage Adapter, CD-ROM Jukebox, And Owners Manual

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the parts shown are in the storage compartment supplied with the Jukebox, and that this is positioned as shown:
1. USB docking station
2. Voltage adapter
3. CD-ROM Jukebox
4. Owner's Manual
