Installing in the center console
Courtesy of VOLVO CARS OF NORTH AMERICA.

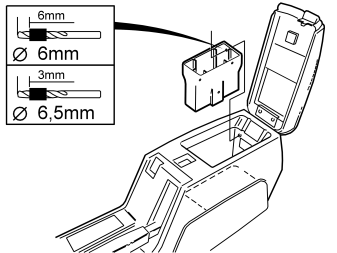

- Position the CD bracket in the center console. Position the guides towards the driver's seat.
- Use the CD bracket as a drilling template. Drill a hole using a 6 mm (15/64) diameter drill in the center console compartment. Use a 6 mm (15/64) drill stop.
- Remove the CD bracket. Drill out the hole in the center console using a 6.5 mm (1/4) diameter drill bit. Use a 3 mm (1/8) drill stop.
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Install the CD bracket in the center console using the supplied clips.
- Install the frame on the CD bracket
- Install the CD holder in the CD bracket. Press in the catches (1).
