Installing and connecting the CD changer

• Move the levers (1.2) to the point marked H.

• Remove the transport screws (1, 2)
• Install the dust cover (3) over the holes for the transport screws.

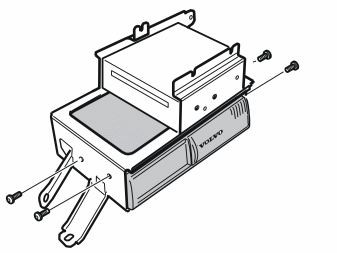

• Take four screws, the bracket and the CD changer from the kit. Tighten the CD changer at the bracket.

• Install the bracket with the CD changer behind the wheel arch. Use four screws (1) from the kit as shown. Tighten the screws

  Applies to cars with rear acceleration sensors:

  • Remove the acceleration sensor behind the left-hand wheel arch
  • Install the CD changer as above. At the same time, reinstall the acceleration sensor in the same rivet nut as before. The sensor must be above the bracket for the CD changer. Use the same screw as before. Tighten to 24 Nm (18 lbf. ft.)  .
    NOTE: The acceleration sensor must be securely installed with the connector turned upwards. If the sensor is not secure, movement may result in false values. This could result in poor system performance when cornering for example.

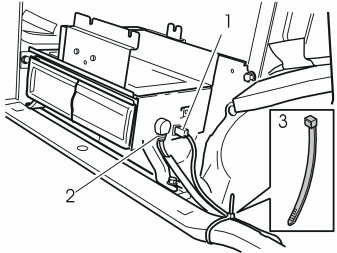

• Connect cable (1) to the power supply
• Connect the cable (2) to the radio
• Secure the cable harness at the cable duct. Use a tie strap (3) as shown.
• Clamp any cable excess to the cable harness.

Applies to cars with RTI (road traffic information)

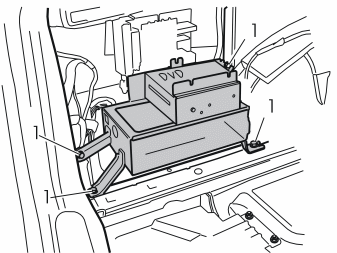

• Remove the four screws (1) holding the bracket with the DVD reader and TV receiver (if applicable)
• Pull out the bracket. Place the bracket to one side.

Applies to cars with RTI (road traffic information)

• Take the new CD changer from the kit. Prepare the CD changer according to Installing and connecting the CD changer .

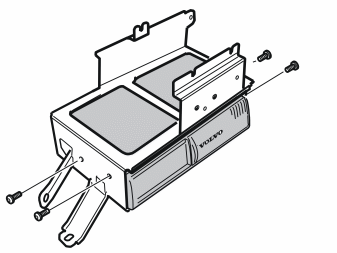

• Slide the CD changer into the bracket. Secure the CD changer using the four screws from the kit as shown.
• Connect the blue pre-routed connector for power supply to the CD changer. The connector is taped at the left-hand tail lamp.
• Connect the new short DIN cable according to the installation instructions supplied with the DIN cable.
• Position the pre-routed cable under the bracket. Screw the bracket into position using the four screws.
• Fold the side panel back into position.
