Cable routing

Fig 1: Route DIN Cable, Secure In Stay With Tie Strap And Clamp To Existing Cable Harness

Courtesy of VOLVO CARS OF NORTH AMERICA.

Route the DIN cable for the CD changer up between the front air duct (1) and the bulkhead stay (2)
Route the cable through the radio compartment
Clamp the cable to the stay. Use the clamp (3) from the kit
Route the cable above and along the front air duct to the seat mounting member (4)
Clamp the cable to the existing cable harness (5).

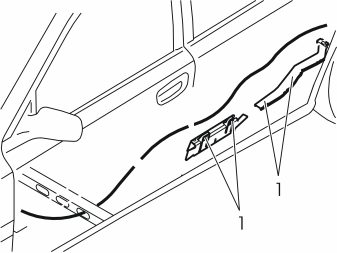

Fig 2: Protective Caps On Lugs

Courtesy of VOLVO CARS OF NORTH AMERICA.

Continue to route the DIN cable under the carpet along the door sills to the rear seat
Install the protective caps on the lugs (1) for the cable ducts.

Applies to cars up to and including -2004 (CH-389999)

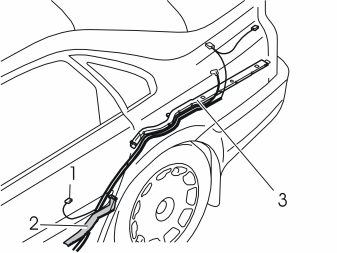

Fig 3: Identifying Front Ground Terminal, Air Duct And Cable Duct

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take the power supply cable for the CD-changer from the kit. Connect the ground lead to the front ground terminal (1) in the rear seat
Route the power supply cable and the DIN cable on the right-hand side of the air duct (2) and under the wiring. Continue out through the hole in the car body behind the left-hand backrest and along the left-hand side of the cable duct (3). Position the single pre-routed red/white (R/W) cables by the rear fuse holder.

Applies to cars from model year 2005- (CH 390000-)

Fig 4: DIN Cable Routed Along Two Cable Ducts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Route the DIN cable (1) along the two cable ducts (2) under the insulation panel and out through the hole in the bodywork to the engine compartment
Route the DIN cable under the four connectors in the front cable duct.

Fig 5: Power Supply, Ground And Cables

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars from model year 2005- (CH 390000-)

Take the cable (1) for power supply from the kit. Connect the ground lead to the existing ground terminal behind the battery. Tighten the screw. Tighten to 10 Nm (7 lbf. ft.) . Position the red/white (R/W) single cables (2) by the rear fuse holder.
Route the cable harness on the left-hand side of the cable duct. The cable with the blue connector (3) must be routed to the pre-routed connector for the DIN cable.

Fig 6: CD-ROM Reader Bracket And Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to all models

Install the small bracket (1) (for the CD ROM reader bracket) in the rear crossmember under the left tail lamp. Use the screw (2) from the kit.
