Cable harness

NOTE: The cable harness from the kit is required when installing a DVD based RTI (road traffic information) system or RTI/TV system together with the CD changer.

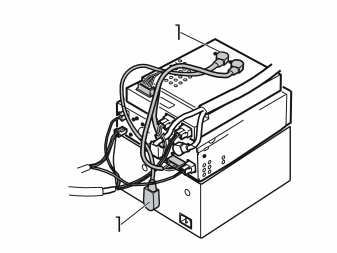

Fig 1: Connecting Short DIN Cable Between CD Changer And Inner DIN Socket On DVD-Reader

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to RTI (road traffic information) and CD changer

Connect the short DIN cable (1) from the kit between the CD changer and the inner DIN socket on the DVD-reader.

Fig 2: Connecting Short DIN Cable Kit Between CD Changer And Free DIN Socket On TV Tuner

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to RTI/TV and CD changers

Connect the short DIN cable (1) from the kit between the CD changer and the free DIN socket on the TV tuner.
