Bluetooth, mute kit: Preparations

• Turn the ignition switch to position 0.
• Disconnect the battery negative lead.
  NOTE: Wait at least five minutes before disassembling the connectors or removing other electrical equipment.

• Turn the clip (1) a quarter turn anti-clockwise.
• Pull the panel out by the rear edge.
• Then pull the panel backwards until the hooks release.
• Remove the panel.

• Remove the screws and sound proofing bracket.

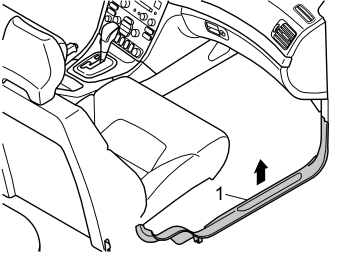

• Remove the sill trim panel (1).

Applies to the S80

• Open the glovebox
• Lift the two hooks on each side past the lugs.
• Detach the gas struts by pulling straight out.

Applies to the S80

1. Remove:
   • the ten screws.
   • the connector for the glove box lighting.
   • the glove box.
