Cargo compartment, preparations

Fig 1: Both Floor Hatches

Courtesy of VOLVO CARS OF NORTH AMERICA.

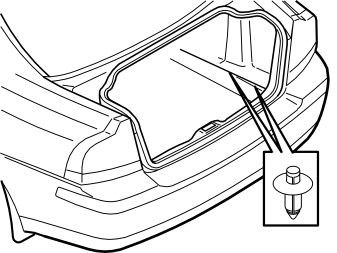

Remove both the floor hatches. Lift the rear edges of the floor hatches slightly. Then pull the hatches backwards from their mountings.

Fig 2: Identifying Right-Hand Folding Panel In Cargo Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

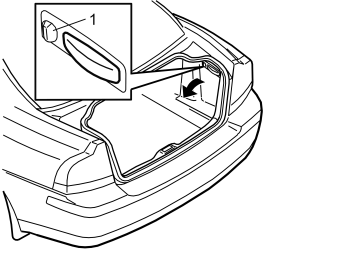

Remove the folding panel in the cargo compartment.

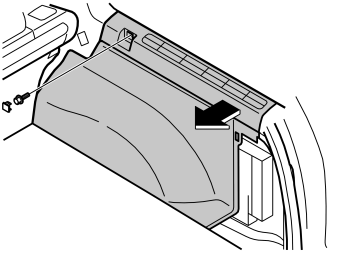

Fig 3: Identifying Right Side Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the side panel by first removing the cover and screw from the front edge.
Pull the top of the panel out until the clips release.
Fold the panel inwards. Lift the panel out.

Fig 4: Folding Right-Hand Seat Cushion And Rear Backrest Forward

Courtesy of VOLVO CARS OF NORTH AMERICA.

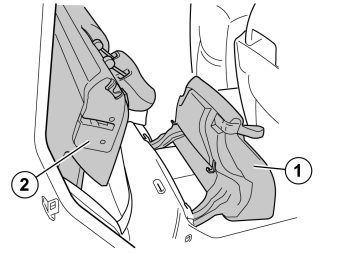

Fold the right-hand seat cushion and rear backrest forward.

Applies to right-hand drive cars

Fold both the seat cushions forward.

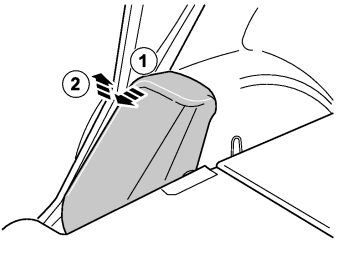

Fig 5: Pulling Side Cushion Forward And Sliding Up

Courtesy of VOLVO CARS OF NORTH AMERICA.

Grasp the upper edge of the right-hand side cushion. Pull the side cushion forward so that the holder on the reverse releases.
Slide the side cushion up. Remove the side cushion.

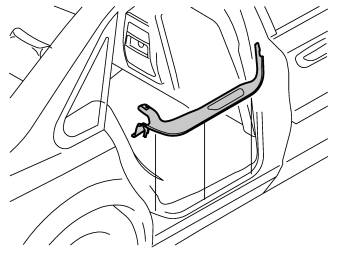

Fig 6: Removing Sill Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

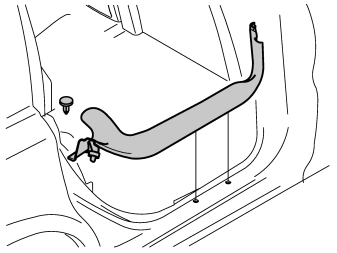

Remove the sill trim panel at the right-hand rear door.

Applies to right-hand drive cars

Remove the sill panel on both sides.

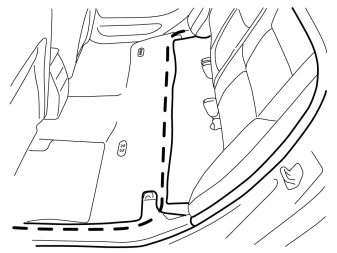

Fig 7: Folding Back Rear Seats Backrest And Pulling Cable Inside Floor Carpets And Lower B Post Panel To Right-Hand Side

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to right-hand drive cars

Fold back the rear seat's backrest temporarily.
Pull the cable inside the floor carpets and the lower B post panel, over to the right-hand side.

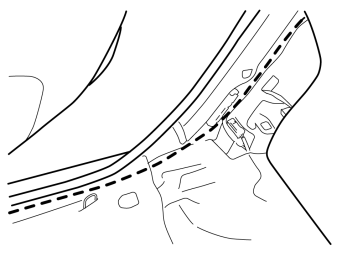

Fig 8: Routing Cables To Cargo Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

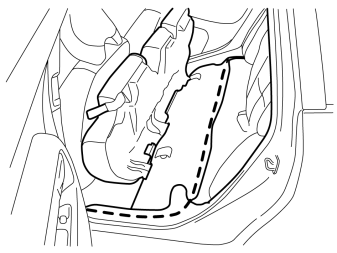

Route the cable inside the floor carpets and the lower B post panel on towards the rear edge of the right-hand rear wheel arch. Route the cables along the existing cables harnesses to the cargo compartment.
CAUTION: Ensure that the cable is positioned so that there is no risk of it catching or rubbing.

Fig 9: Lifting Front Edge Of Cushion And Then Pulling Forward

Courtesy of VOLVO CARS OF NORTH AMERICA.

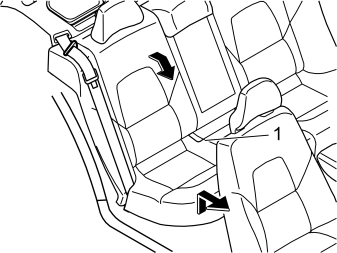

Remove the seat cushion (1) by pulling it up at the front edge, pulling it forward and then lifting it away.
Fold the right-hand rear backrest forward.

Fig 10: Removing Sill Trim Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the sill trim panel at the right-hand rear door.

Applies to right-hand drive cars

Remove the sill panel on both sides.

Fig 11: Fold Front Half Back Over Rear Half Of Cargo Compartment Carpet

Courtesy of VOLVO CARS OF NORTH AMERICA.

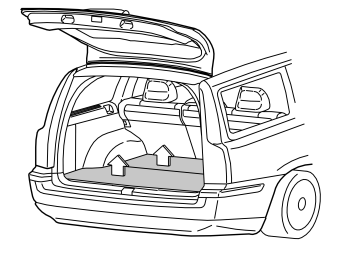

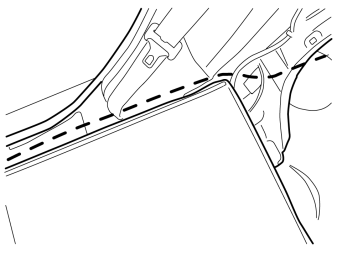

Remove the cargo compartment carpet.

Fig 12: Clip In Lower Edge Of Folding Side Panel On Right-Hand Left-Hand Side

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the center of the clip at the bottom of the folding side panel. Press the clip until a click is heard.
Remove the clips.

Fig 13: Folding In Side Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the handle (1) on the right-hand side through 90 degrees.
Remove the clips.
Fold the side panel inwards and lift it out.

Fig 14: Removing Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the clip (1)
the clips (2)
the panel.

Fig 15: Folding Back Rear Seats Backrest And Pulling Cable Inside Floor Carpets And Lower B Post Panel To Right-Hand Side

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to right-hand drive cars

Fold back the rear seat's backrest temporarily.
Pull the cable inside the floor carpets and the lower B post panel, over to the right-hand side.

Fig 16: Routing Cable To Cargo Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Route the cable inside the floor carpets and the lower B post panel on towards the rear edge of the right-hand rear wheel arch. Route the cables along the existing cables harnesses to the cargo compartment
NOTE: Ensure that the cable is positioned so that there is no risk of it catching or rubbing.
