Location of components

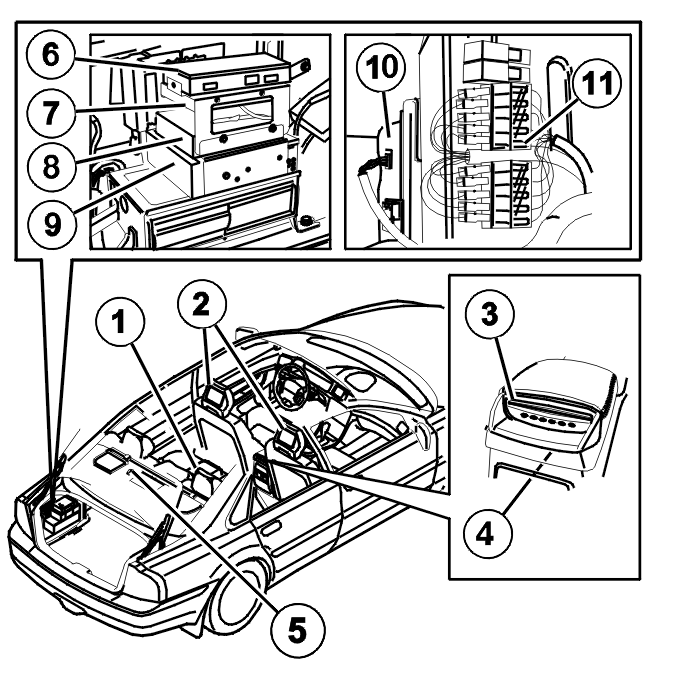

Fig 1: Identifying Rear Seat Entertainment Module
GLL111269Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. AUX socket / 12 volt socket armrest rear
  2. Head restraint with TV screen
  3. DVD player
  4. Rear seat entertainment module (RSE)
  5. Infra red sensor parcel shelf
  6. Voice box
  7. Control module M2D
  8. TV receiver
  9. Road Traffic Information Module (RTI)
  10. Rear audio separation (RAS) control module
  11. Fusebox.
