Replacing the center loudspeaker

Cars which do not have RTI may have a large central loudspeaker in the middle of the dashboard.

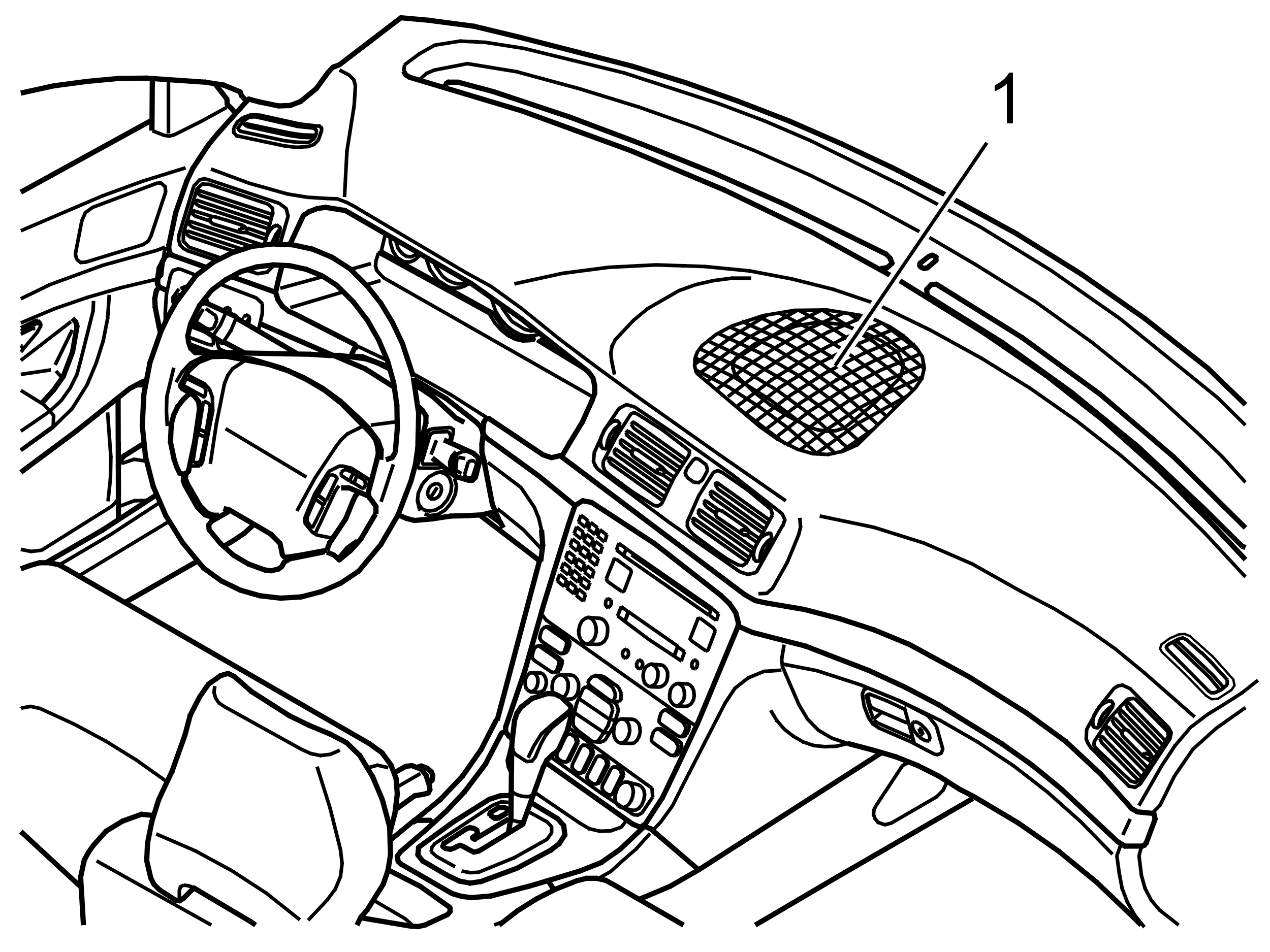

Fig 1: Center Loudspeaker

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the loudspeaker grille. Use: 9512943 . Turn a quarter turn and pull up.

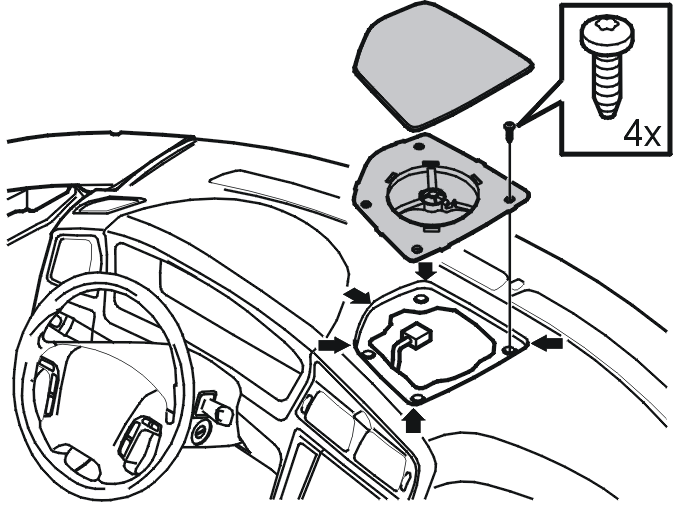

Fig 2: Identifying Center Loudspeaker, Screws And Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the four screws
• the connector.
