Internal lights

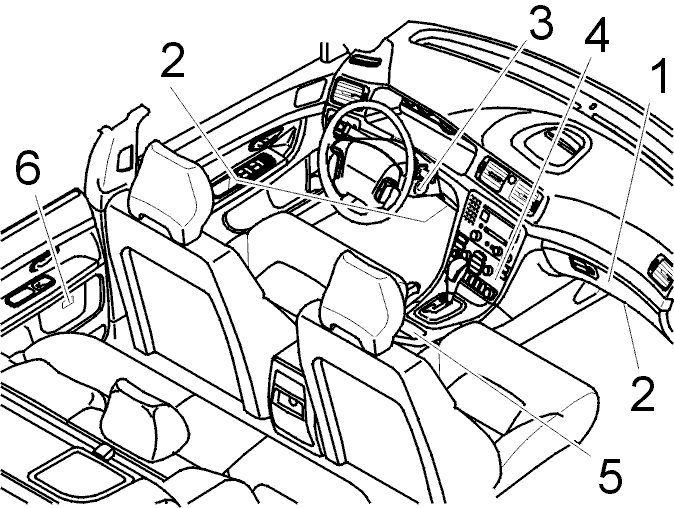

Fig 1: Identifying Internal Lighting (1 Of 2)
GLL103119Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. 1. Glove compartment lighting
  2. 2. Front courtesy lighting
  3. 3. Ignition key lighting
  4. 4. Lighting for the ECC control module and dashboard environment panel
  5. 5. Lighting, front ashtray
  6. 6. Courtesy lighting, rear.

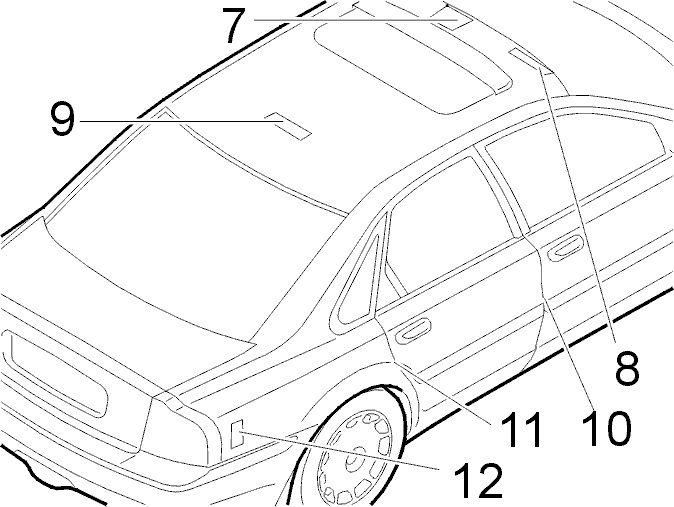

Fig 2: Identifying Internal Lighting (2 Of 2)
GLL103120Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. 7. Interior lighting and the upper electronic module
  2. 8. Vanity mirror lighting
  3. 9. Rear reading lamp
  4. 10. Front door warning lamp
  5. 11. Rear door warning lamp
  6. 12. Cargo compartment lighting.
