Connecting the power supply

Fig 1: Press In Catches On Rear Brown Connector, Turn Up Lock Arm, And Pull Out Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to all models

Press in the catch on the rear brown connector in the cargo compartment fuse holder. Turn up the lock arm as far as possible and pull out the connector.

Fig 2: Pull Apart Sides Of Holder For Connector And Pull Out Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully pry apart the sides of the connector holder in the ends so that the connector can pass by the retaining hooks.
Pull the connector out from the holder.

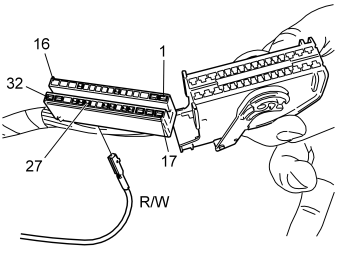

Fig 3: Connecting Blue/Red Cable To Position 27 In Connector And Reinstalling Connector In Holder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the blue/red (R/BL) cable with pin to position 27 in the connector.
Reinstall the connector in the holder and reinstall the whole unit in the fuse holder.

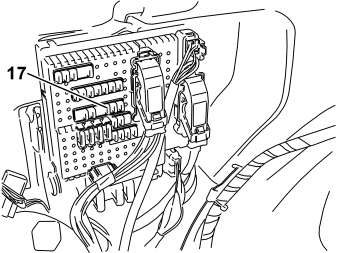

Fig 4: Fitting 5A Fuse In Position 17

Courtesy of VOLVO CARS OF NORTH AMERICA.

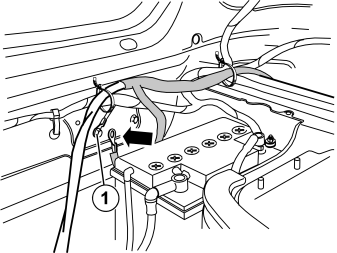

Fig 5: Connecting Routed Ground Lead To Grounding Point Behind Battery

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the routed ground lead to the grounding point (1) behind the battery and tighten the grounding screw securely.
