Preparations (applies only to the S80)
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Open the trunk lid.

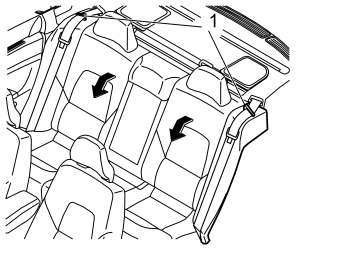

- Pull the catches (1) on right and left-hand sides. Fold the backrests forwards.
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Remove the seat belt from the guide (1) on the right and left side cushions.
- Fold forward both backrests.
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Carefully lift the front edge of the parcel shelf panel until the clips (1) release.
- Lift up the panel further until the locating pins (2) release from their holes.
- Pull out the parcel shelf. Lay the parcel shelf on the folded backrests.
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Turn the parcel shelf panel upside down.
- Remove the insulation under the loudspeaker grilles.
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Remove the stamped panel under the loudspeaker grilles.
