Installation and final tasks (applies only to the S80)

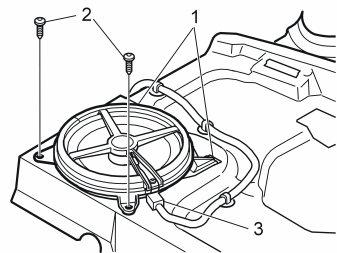

Fig 1: Installing Speakers And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Position the loudspeaker and the mountings (1) in the panel around the rectangular hole in the parcel shelf.
• Adjust the loudspeaker towards the two predrilled holes in the panel.
• Install the screws (2) (from the kit). Tighten the loudspeaker.
• Connect the loudspeaker to the pre-routed connector (3).
• Carry out the above procedure on the opposite side.
• Reinstall the parcel shelf panel.
• Reinstall the seat belts in the guides on the right and left hand side cushions.
• Fold the backrests back into position.
