Cargo compartment, preparations

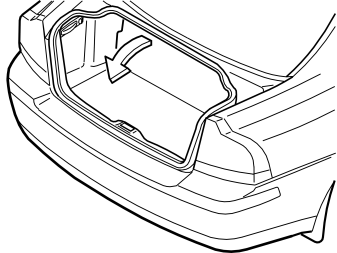

Fig 1: Fold Front Half Back Over Rear Half Of Cargo Compartment Carpet

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the cargo compartment carpet.

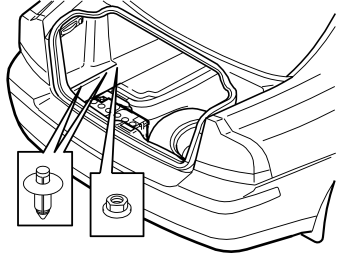

Fig 2: Clips In Lower Edge Of Folding Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Press in the center of the clips on the lower edge of the folding side panel on the left-hand side until a click is heard.
• Remove the two clips.
• Remove the plastic nut from the front edge of the side panel.

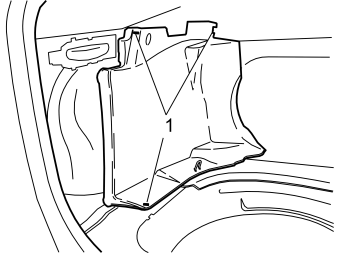

Fig 3: Identifying Clips From Left Front Side Panel In Cargo Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the clips (1) and plastic nut from the left front side panel in the cargo compartment. The front upper clip is most easily removed from the rear seat side.
• the front side panel.
