Checking cables

Check cables and connectors to the motor. If no fault is found, replace the sun roof module (SRM).

Remedy as necessary.

Other information

• See Control module, sun roof, replacing and Control module, sun roof, replacing .
• See Checking wiring and terminals

Refer to Functionality check

Check the cables and connectors of the sun roof module (SRM) for contact resistance and open-circuit.

Remedy as necessary.

Other information

• See Switch, sun roof, replacing and Switch sun roof, replacing .
• See Checking wiring and terminals

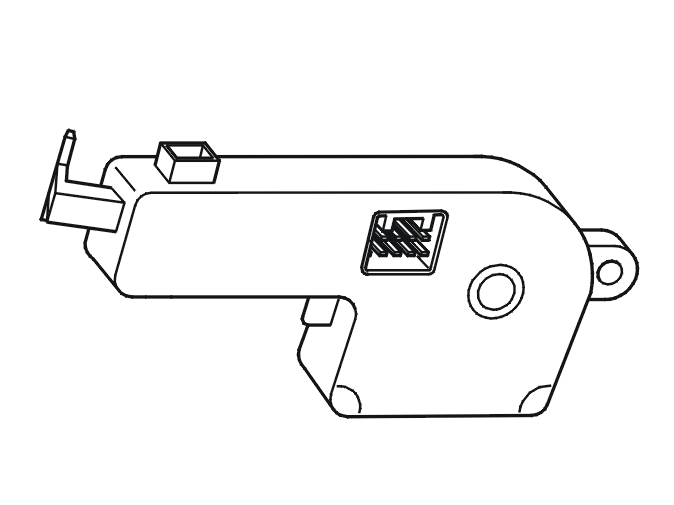

Fig 2: Identifying Sun Roof Module (SRM)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Refer to Functionality check

Check that the motor runs smoothly. Replace the motor as necessary.

Check that the sun roof opens properly. It should take approx. 6 seconds for the sun roof to completely open from the closed position. Check the mechanism as necessary. Clean and lubricate the rail.

Check the mechanism, rails and drive for unevenness. Replace the drive and/or mechanism as necessary.

Remedy as necessary.

Other information

• See Motor sun roof, replacement and Motor sun roof, replacement
• See Mechanism sun roof, replacement , Mechanical cable sun roof, replacement , Mechanism/mechanical cable sun roof, replacement and Mechanism/mechanical cable sun roof, replacement

Refer to Functionality check
