Disconnecting the anti-roll bar link

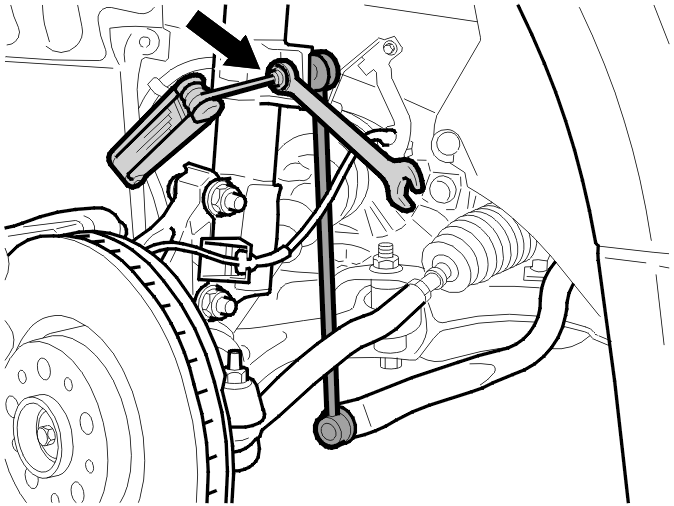

Fig 1: Disconnecting Anti-Roll Bar Link
GLL108178Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the nut. Pull the link out of its mounting.

NOTE:

Counterhold using a Torx wrench so that the boot for the link is not damaged.
