Installing the upholstery on the outer backrest cushion (second row)

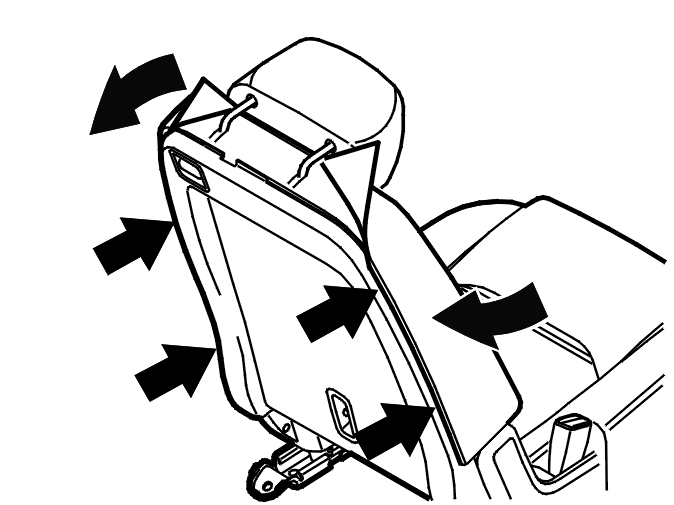

Fig 1: Folding In Weatherstrip Into Channel In Rear Section

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the upholstery for the cushion
• the upholstery / cushion on the backrest frame.

Fold in the weatherstrip into the channel in the rear section.

Start with the lower weatherstrip, continue with the weatherstrip at the head restraint and finish with the weatherstrips on the sides.

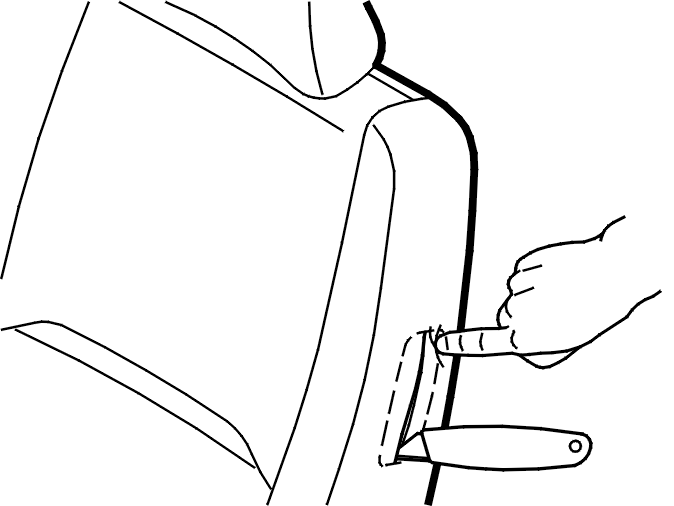

Fig 2: Cutting Through Upholstery

Courtesy of VOLVO CARS OF NORTH AMERICA.

Feel behind the upholstery and locate the bracket on the inside. Carefully cut through the upholstery as shown in the illustration. Be extra careful at the ends.

Install:

• the head restraint panel.
• the panel for the grab handle
• 1 screw. Tighten
• the grab handle
• 1 screw. Tighten.
