Removing The Upper Control Arm

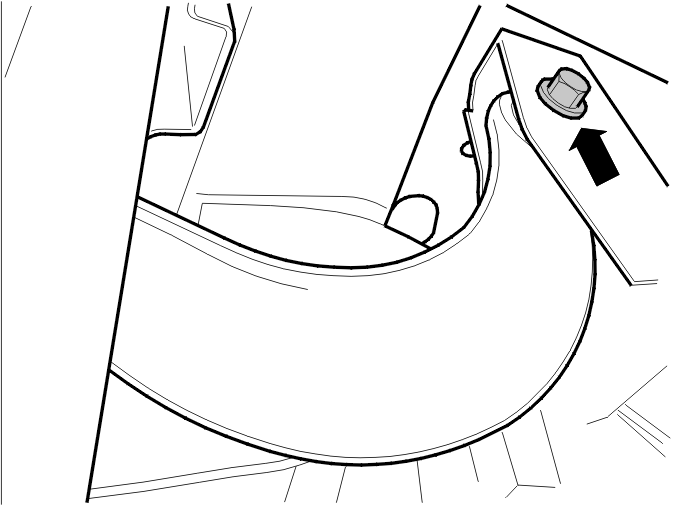

Fig 1: Locating Spindle Bolt

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw for the wheel spindle.

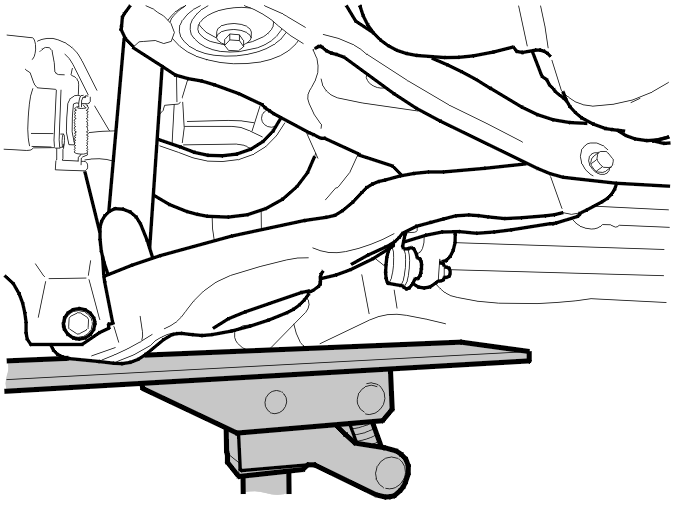

Fig 2: Identifying Bolt-Subframe/Control Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the screw x1 for the sub-frame
• the control arm.

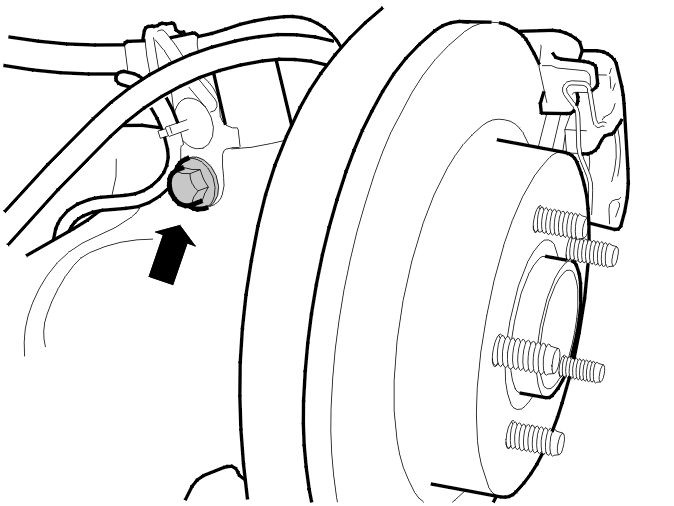

Fig 3: Releasing Pressure on the Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.
