Installing The Sub-Frame

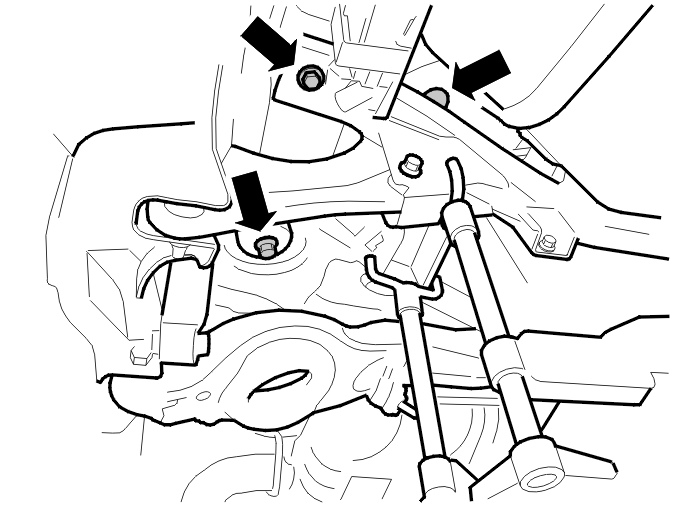

Fig 1: Locating Subframe Mounting bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully lift the sub-frame.

NOTE:

Ensure that no cables / hoses are trapped when installing the subframe.

Install the screws, 3 pcs., on both sides. Tighten See: TIGHTENING TORQUE .

Remove the lifting table.
