Installing Tie Rod

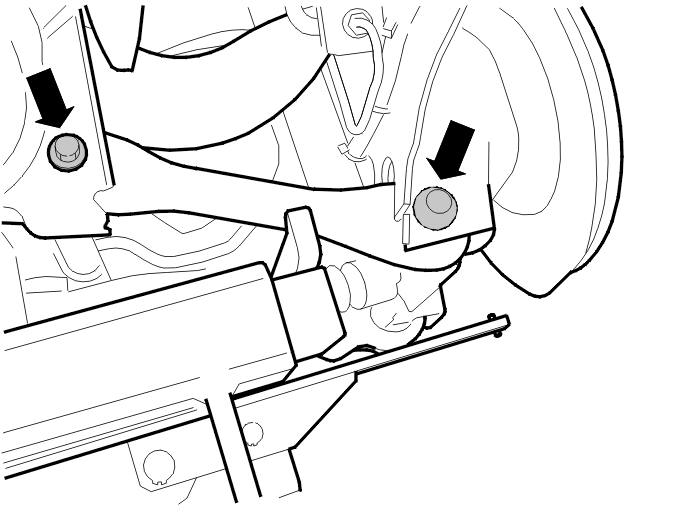

Fig 1: Releasing Pressure on the Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the tie rod
the 2 screws. Do not tighten yet.

NOTE:

The rear suspension must be in the normal position when tightening all the joints in the rear suspension where rubber bushings are involved. See: NORMAL POSITION .

Tighten the screws. Tighten. See: TIGHTENING TORQUE .

NOTE:

Raise the wheel knuckle a little so that the 2 screws are not damaged when they are installed. Use a transmission jack.
