Installing The Control Arm

NOTE:

For tightening torques, See: TIGHTENING TORQUE .

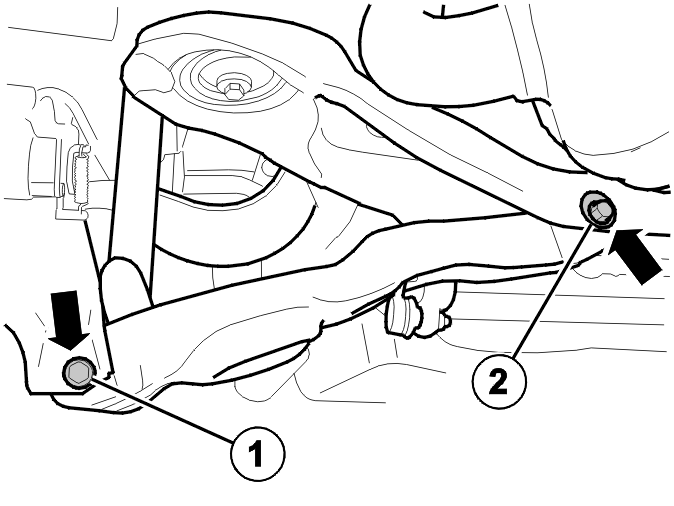

Fig 1: Identifying Rear Control Arm Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the control arm
the 2 screws, (1) and (2). Do not tighten yet.

NOTE:

The rear suspension must be in the normal position when tightening all the joints in the rear suspension where rubber bushings are involved. See: NORMAL POSITION .

Tighten the screws. For tightening torques, See: TIGHTENING TORQUE .
