Removing Bushing

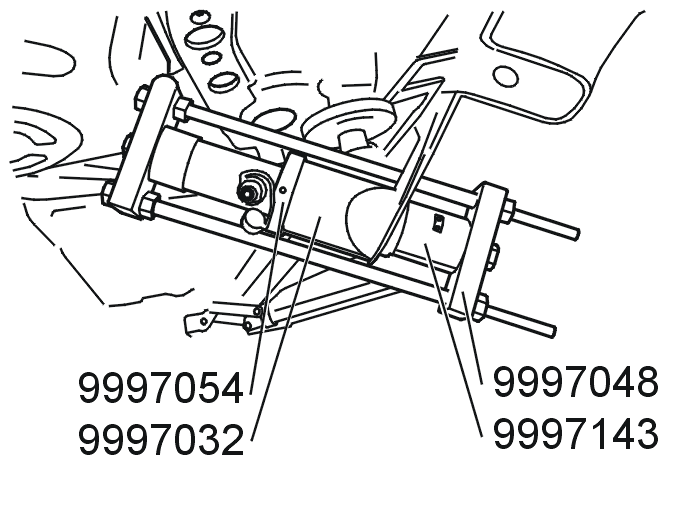

Fig 1: Identifying Special Tools (9997054, 9997048, 9997032, 9997143) Installed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull down the lateral link and apply the press tool.

Install the hydraulic cylinder as illustrated.

Use: 9997054 with: 9997048 , socket: 9997032 and drift: 9997143 .

NOTE:

Measure and note the position of the bushing before removal.

Pull the bushing out.
