Installing The Clips For The Brake Cable

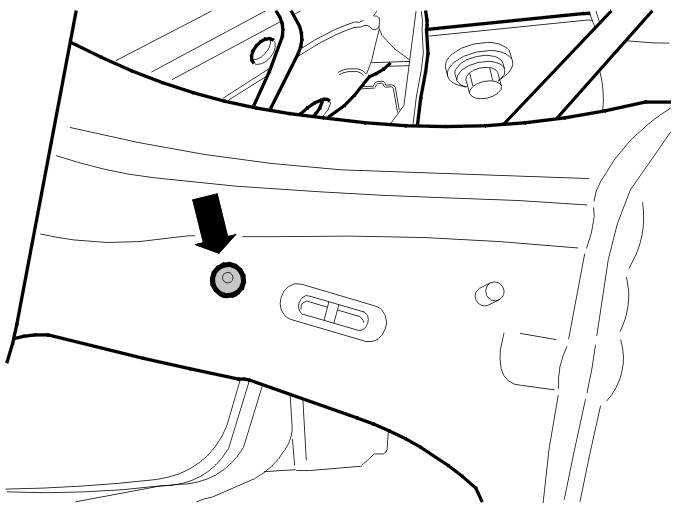

Fig 1: Identifying Brake Cable Clip

GLL140081

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the 1 clip
the screw.
